Механическая Трансмиссия Ea61. Первичный Вал Разборка

Трансмиссия. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

Первичный Вал -- Разборка

1. REMOVE INPUT SHAFT REAR BEARING SHAFT SNAP RING

Using a snap ring expander, remove the input shaft rear bearing shaft snap ring from the input shaft.

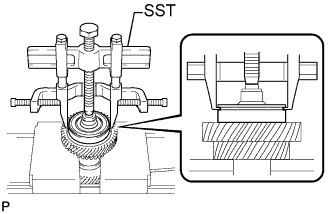

2. REMOVE INPUT SHAFT REAR RADIAL BALL BEARING

Using SST, remove the input shaft rear radial ball bearing from the input shaft.
SST
09950-40011(09951-04020,09952-04010,09953-04020,09954-04010,09955-04011,09957-04010,09958-04011)
09631-20031

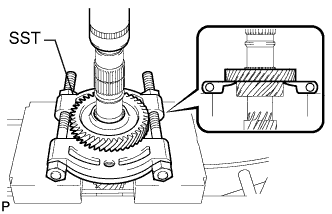

3. REMOVE 6TH DRIVE GEAR

Using SST and a press, remove the 6th drive gear from the input shaft.
SST
09950-00020

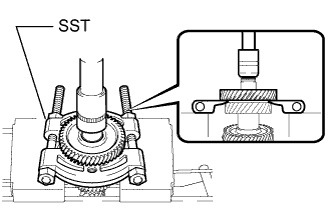

4. REMOVE 3RD DRIVE GEAR

Using SST and a press, remove the 3rd drive gear from the input shaft.
SST
09950-00020

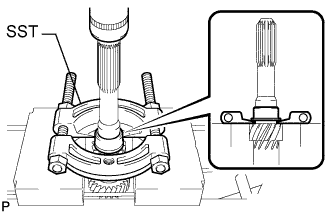

5. REMOVE 4TH DRIVE GEAR

Using SST and a press, remove the 4th drive gear from the input shaft.
SST
09950-00020

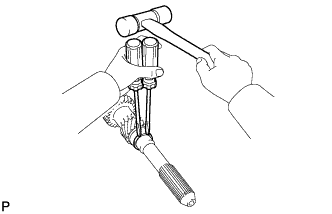

6. REMOVE INPUT SHAFT SNAP RING

Using 2 screwdrivers and a hammer, remove the input shaft snap ring from the input shaft.

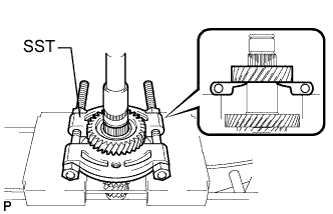

7. REMOVE INPUT SHAFT FRONT BEARING INNER RACE

Using SST and a press, remove the input shaft front bearing from the input shaft inner race.
SST
09950-00020
