Трансмиссия. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Механическая Трансмиссия 'Multimode' C53A. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Механическая Трансмиссия 'Multimode' В Сборе -- Снятие |
| 1. ADJUST CLUTCH POSITION |
- ПРИМЕЧАНИЕ:
- Remove the clutch actuator with the rod in the predetermined position. Otherwise, it may cause clutch slipping or operational malfunctions when reinstalling (See page Нажмите здесь).
| 2. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE |
- УКАЗАНИЕ:
- See the steps from "REMOVE FRONT WHEELS" through "REMOVE ENGINE ASSEMBLY WITH TRANSAXLE" (See page Нажмите здесь for 1ND-TV).
| 3. REMOVE ENGINE WIRE |
| 4. REMOVE STARTER ASSEMBLY (for 1ND-TV) |
- УКАЗАНИЕ:
- See page Нажмите здесь for TMC Made
- See page Нажмите здесь for TMUK, TMMT Made
| 5. REMOVE NO. 1 AIR TUBE |
Loosen the 2 hose clamps, and remove the 2 bolts and the No. 1 air tube.
 |
| 6. REMOVE MULTI-MODE MANUAL TRANSAXLE ASSEMBLY |
Remove the 7 bolts and the multi-mode manual transaxle from the engine.
 |
| 7. REMOVE ENGINE MOUNTING BRACKET LH |
Remove the 3 bolts and the engine mounting bracket LH.
 |
| 8. REMOVE FRONT ENGINE MOUNTING BRACKET |
Remove the 3 bolts and the front engine mounting bracket.
 |
| 9. REMOVE REAR ENGINE MOUNTING BRACKET |
Remove the 3 bolts and the rear engine mounting bracket.
 |
| 10. REMOVE NO. 1 CLUTCH ACTUATOR BRACKET |
Remove the 3 bolts and the No. 1 clutch actuator bracket from the transaxle.
 |

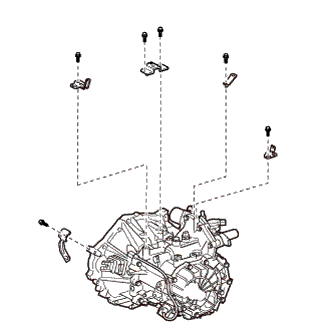

| 11. REMOVE WIRE HARNESS CLAMP BRACKET |
Remove the 6 bolts and 5 wire harness clamp brackets.
 |
