  1. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

Гидравлический Клапан Изменения Фаз В Сборе -- Проверка



1. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

  1. Resistance inspection

    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance:
      Tester Connection
      		Condition
      		Specified Condition
      1 - 2
      		20°C (68°F)
      		6.9 to 7.9 Ω
      If necessary, replace the camshaft timing oil control valve assembly.


  1. Movement inspection



      COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Гидравлический Клапан Изменения Фаз В Сборе Проверка

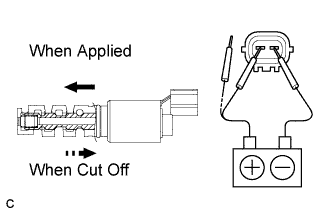

    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check the movement of the valve.

      ПРИМЕЧАНИЕ:
      Confirm that the valve moves freely and does not stick in any position.
      If necessary, replace the camshaft timing oil control valve assembly.
      УКАЗАНИЕ:
      Accumulation of foreign objects causes subtle pressure leaks. The subtle pressure leaks will cause the camshaft to advance, and this will cause a DTC to be set.
