DTC B2286 Runnable Signal Malfunction


DESCRIPTION

This DTC is output when serial communication signals and CAN communication signals in the circuit between the main body ECU and ECM are inconsistent.
УКАЗАНИЕ:
When the main body ECU is replaced with a new one and the negative (-) battery terminal is connected, the power source mode becomes the IG-ON mode. When the battery is removed and reinstalled, the power source mode that was selected when the battery was removed is restored.
After the main body ECU is replaced, perform the registration procedures for the engine immobiliser system.

DTC No.
DTC Detection Condition
Trouble Area
B2286
Serial communication signals and CAN communication signals in the circuit between the main body ECU and ECM are inconsistent.
  1. CAN communication system
  2. ECM
  3. Main body ECU
  4. Wire harness or connector

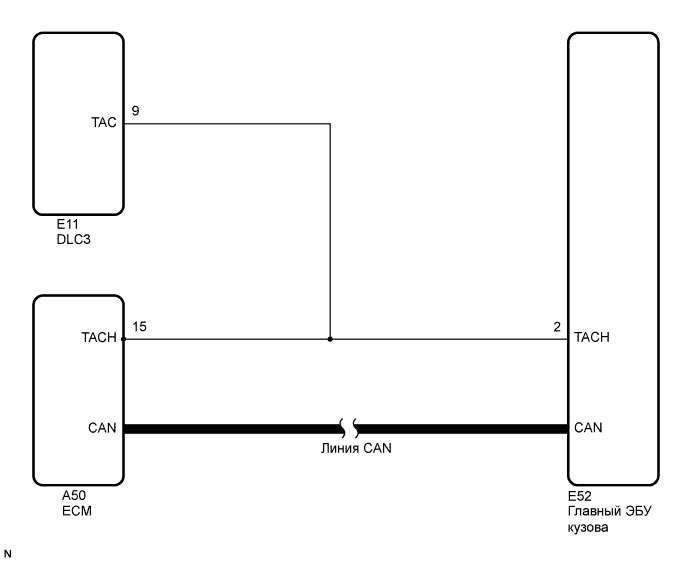

WIRING DIAGRAM


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Запуска 2Zr-Fe.Система Запуска. Dtc B2286 Runnable Signal Malfunction


INSPECTION PROCEDURE

1.CHECK OPERATION OF TACHOMETER

  1. Run the engine and check if the function of the tachometer in the combination meter is normal.

    OK:
    Actual engine revolution speed and the revolution indicated on the tachometer are the same.


NG
Перейдите к шагу 3
OK


2.CHECK DTC OUTPUT (CAN COMMUNICATION SYSTEM)

  1. Delete the DTCs (See page Нажмите здесь).

  1. Check for CAN communication system DTC U0146 (See page Нажмите здесь).

    УКАЗАНИЕ:
    If the DTCs for the CAN communication system malfunction are output, inspect those DTCs first (See page Нажмите здесь).
    OK:
    No DTC is output.


NG
GO TO CAN COMMUNICATION SYSTEM (Нажмите здесь)
OK

GO TO COMBINATION METER SYSTEM

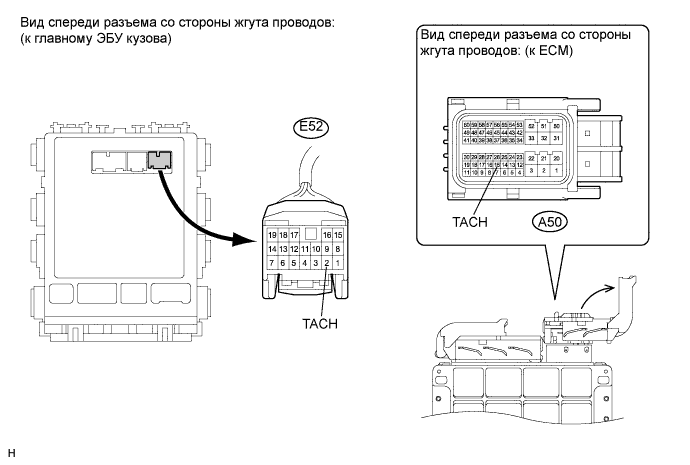

3.CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - ECM)


  1. Disconnect the A50 ECM connector.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Запуска 2Zr-Fe.Система Запуска. Dtc B2286 Runnable Signal Malfunction

  1. Disconnect the E52 ECU connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    E52-2 (TACH) - A50-15 (TACH)
    		Always
    		Below 1 Ω
    E52-2 (TACH) or A50-15 (TACH) - Body ground
    		Always
    		10 kΩ or higher


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


4.READ VALUE OF INTELLIGENT TESTER

  1. Reconnect the connectors.

  1. Connect the intelligent tester to the DLC3.

  1. Check the DATA LIST for proper functioning of the engine.

    УКАЗАНИЕ:
    When using the intelligent tester with the engine switch off, turn on and off any of the door courtesy light switches repeatedly at 1.5 second intervals or less until communication between the tester and vehicle starts.

    Body:
    Tester Display
    		Measurement Item/Range
    		Normal Condition
    		Diagnostic Note
    E/G Cond
    		Engine condition/STOP or RUN
    		STOP: Engine is stopped
    RUN: Engine is running
    		-
    OK:
    STOP (engine is stopped) and RUN (engine is running) appear on the screen.


NG
REPLACE ECM (Нажмите здесь)
OK

REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)
