DTC B2285 Steering Lock Position Signal Circuit Malfunction


DESCRIPTION

This DTC is output when serial communication signals and LIN communication signals in the circuit between the main body ECU and steering lock actuator (steering lock ECU) are inconsistent.
УКАЗАНИЕ:
When the main body ECU is replaced with a new one and the negative (-) battery terminal is connected, the power source mode becomes the IG-ON mode. When the battery is removed and reinstalled, the power source mode that was selected when the battery was removed is restored.
After the main body ECU or steering lock ECU is replaced, perform the registration procedures for the engine immobiliser system.

DTC No.
DTC Detection Condition
Trouble Area
B2285
Cable and LIN information between the main body ECU and the steering lock ECU are inconsistent
  1. Main body ECU
  2. Steering lock ECU
  3. Wire harness or connector

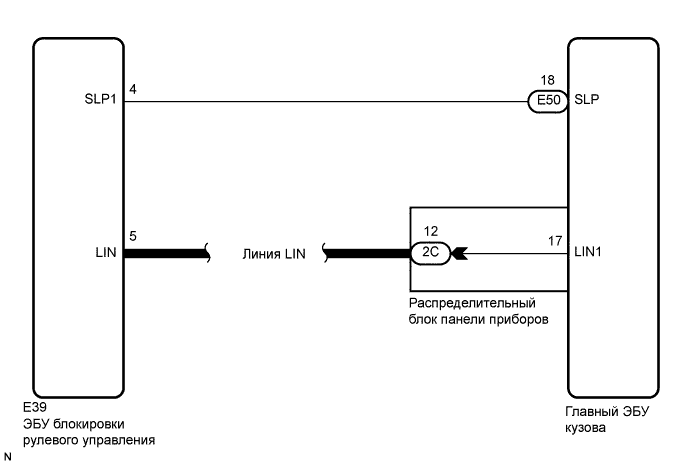

WIRING DIAGRAM


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Запуска 2Ad-Fhv.Система Запуска. Dtc B2285 Steering Lock Position Signal Circuit Malfunction


INSPECTION PROCEDURE

1.READ VALUE OF INTELLIGENT TESTER

  1. Connect the intelligent tester to the DLC3.

  1. Check the DATA LIST for proper functioning of the steering lock function.

    УКАЗАНИЕ:
    When using the intelligent tester with the engine switch off, turn on and off any of the door courtesy light switches repeatedly at 1.5 second intervals or less until communication between the tester and vehicle starts.

    Body:
    Tester Display
    		Measurement Item/Range
    		Normal Condition
    		Diagnostic Note
    Str Unlock SW
    		Steering lock condition / ON or OFF
    		ON: Steering is unlocked (Engine switch on (ACC))
    OFF: Steering is locked (Engine switch off)
    		-
    OK:
    ON (steering is unlocked) and OFF (steering is locked) appear on the screen.


NG
Перейдите к шагу 3
OK


2.CHECK FOR DTCS

  1. Delete the DTCs (See page Нажмите здесь).

  1. Check for DTC B2285 (Steering lock position signal circuit malfunction), DTC B2287 (LIN communication master malfunction) and DTC B2785 (Communication malfunction between ECUs connected by LIN).

    Result:
    Display (DTC output)
    		Proceed to
    "DTC B2285" only
    		A
    "DTC B2287" and/or "DTC B2785"
    		B
    No DTC
    		C
    УКАЗАНИЕ:
    1. If DTC B2287 is output (See page Нажмите здесь).
    2. If DTC B2785 is output (See page Нажмите здесь).


B
GO TO DTC CHART (Нажмите здесь)

C
CHECK INTERMITTENT PROBLEMS
A

REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)

3.CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - STEERING LOCK ECU)

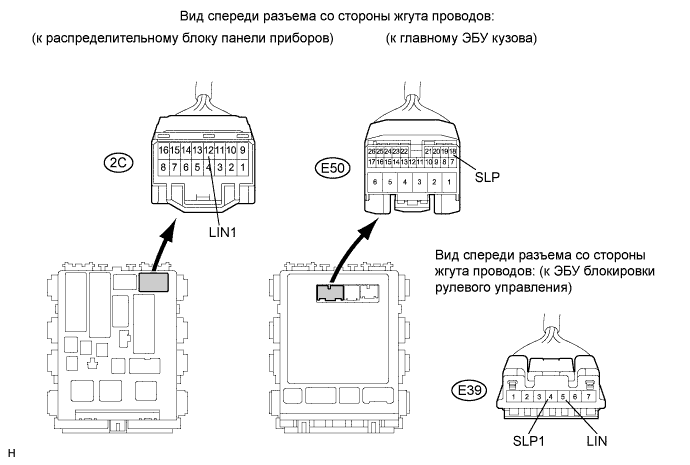

  1. Disconnect the E50, 2C and E39 ECU connectors.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Запуска 2Ad-Fhv.Система Запуска. Dtc B2285 Steering Lock Position Signal Circuit Malfunction

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    E50-18 (SLP) - E39-4 (SLP1)
    		Always
    		Below 1 Ω
    2C-12 (LIN1) - E39-5 (LIN)
    		Always
    		Below 1 Ω
    E50-18 (SLP) or E39-4 (SLP1) - Body ground
    		Always
    		10 kΩ or higher
    2C-12 (LIN1) or E39-5 (LIN) - Body ground
    		Always
    		10 kΩ or higher


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


4.CHECK MAIN BODY ECU OPERATION

  1. After replacing the main body ECU with a normally functioning ECU, check that the engine starts. Make sure that the clutch pedal is depressed at this time.

  1. Check that the engine switch mode can be changed by pushing the engine switch.

    УКАЗАНИЕ:
    Without depressing the clutch pedal, push the engine switch repeatedly. Engine switch mode should turn from off to on (ACC) to on (IG) and back to off. With the clutch pedal depressed, push the engine switch repeatedly. Engine switch mode should turn to ENGINE START from any status.
    OK:
    Engine starts normally.


NG
REPLACE STEERING LOCK ECU (Нажмите здесь)
OK

END (MAIN BODY ECU DEFECTIVE)
