Система Смазки Проверка Без Снятия С Автомобиля. Corolla Auris

Warm up the engine, stop the engine, and wait for 5 minutes. The oil level should be between the low and full level marks of the dipstick.
If the level is below the low level mark, check for leakage and add oil until it reaches the full level mark.

ПРИМЕЧАНИЕ:

Do not fill the engine oil above the full level mark.

Check the oil for deterioration, water contamination, discoloring or thinning.
If the quality is visibly poor, replace the oil.

УКАЗАНИЕ:

1. TOYOTA Genuine Motor Oil or equivalent is recommended.

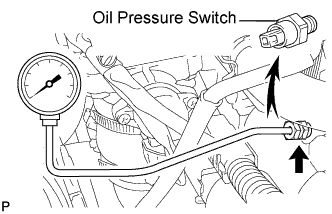

Disconnect the oil pressure switch connector.

Remove the oil pressure switch.

Install the oil pressure gauge.

Warm up the engine.

Measure the oil pressure.

Standard oil pressure:

Condition	Specified Condition
Idle	29 kPa (0.3 kgf/cm2, 4.2 psi) or more
4500 rpm	245 kPa (2.5 kgf/cm2, 36 psi) or more

Remove the oil pressure gauge.

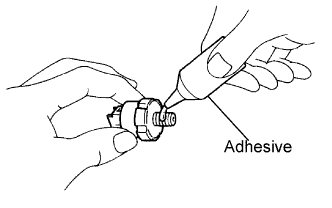

Apply adhesive to 2 or 3 threads of the oil pressure switch.

Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

Install the oil pressure switch.

Момент затяжки:

15 Н*м{153 кгс*см, 11 фунт-сила-футов}

ПРИМЕЧАНИЕ:

Do not start the engine for at least 1 hour after installation.

Connect the oil pressure switch connector.

Start the engine and check for engine oil leaks.

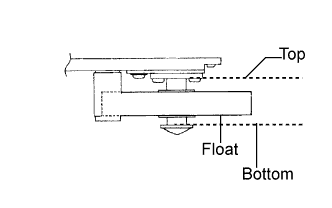

Remove the engine oil level sensor.

Measure the resistance according to the value(s) in the table below.

Standard resistance:

Tester Connection	Condition	Specified Condition
1 - 2	Float position is at the top	Below 1 Ω
1 - 2	Float position is at the bottom	10 kΩ or higher
