СИСТЕМА ECD - Цепь контрольной лампы неисправности MIL


DESCRIPTION

The MIL (Malfunction Indicator Lamp) is used to indicate vehicle malfunctions detected by the ECM. When the ignition switch is turned on (IG), power is supplied to the MIL circuit, and the ECM provides the circuit ground which illuminates the MIL.
The MIL operation can be checked visually: When the ignition switch is first turned on (IG), the MIL should be illuminated and should then turn off. If the MIL remains illuminated or is not illuminated, conduct the following troubleshooting procedure using the intelligent tester.

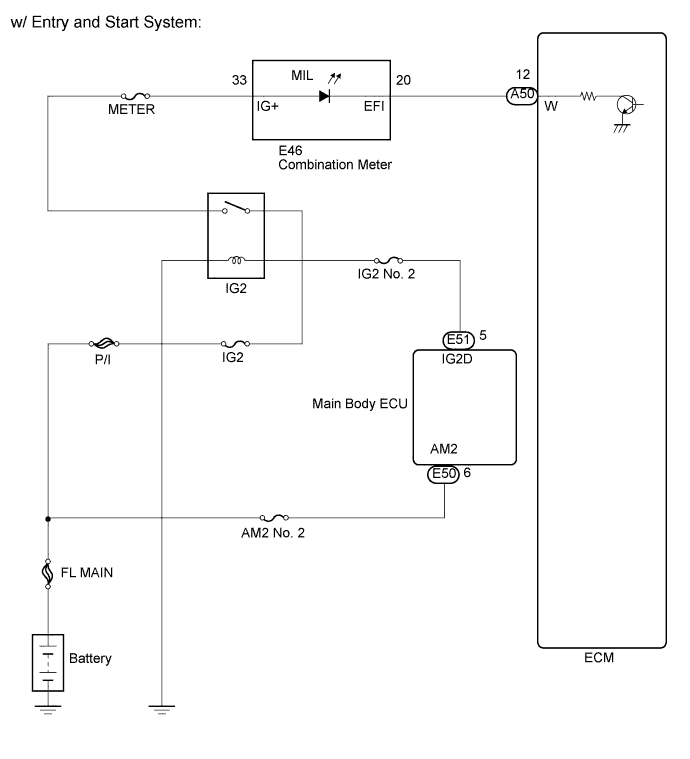

WIRING DIAGRAM


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Ad-Fhv.Система Ecd.Система Ecd Цепь Контрольной Лампы Неисправности Mil


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Ad-Fhv.Система Ecd.Система Ecd Цепь Контрольной Лампы Неисправности Mil


INSPECTION PROCEDURE

ПРИМЕЧАНИЕ:
After replacing the ECM, the new ECM needs registration (See page Нажмите здесь) and initialization (See page Нажмите здесь).
1.CHECK THAT MIL IS ILLUMINATED

  1. Perform troubleshooting in accordance with the table below.

    Result:

    Result
    		Proceed to
    MIL remains ON
    		A
    MIL does not illuminate
    		B


B
Перейдите к шагу 5
A


2.CHECK WHETHER MIL TURNS OFF

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch on (IG) and turn the tester on.

  1. Select the following menu items: Powertrain / Engine and ECT / DTC.

  1. Check if any DTCs have been stored. Note down any DTCs.

  1. Clear the DTCs (See page Нажмите здесь).

  1. Check if the MIL goes off.

    Standard:
    The MIL goes off.


NG
Перейдите к шагу 3
OK

REPAIR CIRCUITS INDICATED BY OUTPUT DTCS

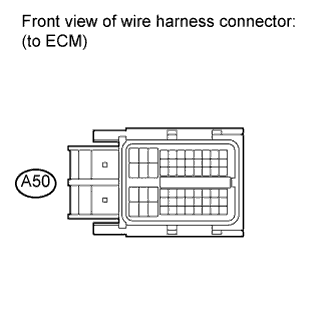

3.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN WIRE HARNESS)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Ad-Fhv.Система Ecd.Система Ecd Цепь Контрольной Лампы Неисправности Mil

  1. Disconnect the ECM connector.

  1. Turn the ignition switch on (IG).

  1. Check that the MIL is not illuminated.

    OK:
    The MIL is not illuminated.

  1. Reconnect the ECM connector.



NG
Перейдите к шагу 4
OK

REPLACE ECM (Нажмите здесь)

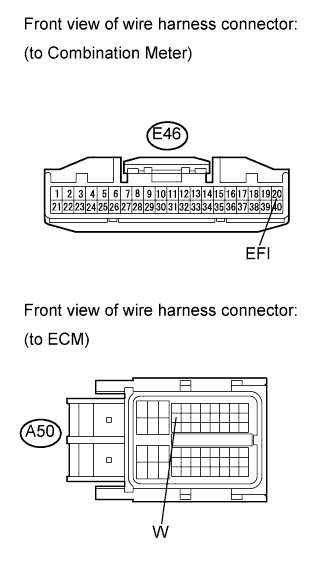

4.CHECK HARNESS AND CONNECTOR (COMBINATION METER - ECM)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Ad-Fhv.Система Ecd.Система Ecd Цепь Контрольной Лампы Неисправности Mil

  1. Disconnect the combination meter connector.

  1. Disconnect the ECM connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    A50-12 (W) or E46-20 (EFI) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the combination meter connector.

  1. Reconnect the ECM connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (COMBINATION METER - ECM)
OK

REPAIR OR REPLACE COMBINATION METER ASSEMBLY

5.CHECK THAT MIL IS ILLUMINATED

  1. Check if the MIL is illuminated when the ignition switch is turned on (IG).

    OK:
    The MIL is illuminated.


NG
Перейдите к шагу 6
OK

SYSTEM OK

6.CHECK THAT ENGINE STARTS

  1. Turn the ignition switch on (IG).

  1. Start the engine.

    Result:

    Result
    		Proceed to
    Engine starts
    		A
    Engine does not start*
    		B
    УКАЗАНИЕ:
    *: The intelligent tester cannot communicate with the ECM.


B
GO TO VC OUTPUT CIRCUIT (Нажмите здесь)
A


7.INSPECT COMBINATION METER ASSEMBLY (MIL CIRCUIT)

  1. Check the MIL circuit (See page Нажмите здесь).



NG
REPAIR OR REPLACE COMBINATION METER ASSEMBLY
OK

CHECK AND REPLACE HARNESS AND CONNECTOR (COMBINATION METER - ECM)
