Масляный Радиатор Двигателя -- Снятие



1. REMOVE NO. 1 ENGINE COVER


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Смазки 2Ad-Fhv.Система Смазки.Масляный Радиатор Двигателя Снятие

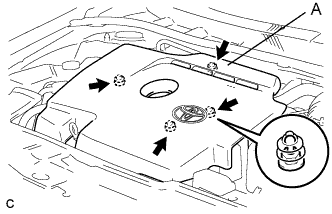

  1. Detach the 4 clips and remove the engine cover.

    ПРИМЕЧАНИЕ:
    1. Lift the area around the clips on the top of the engine cover.
    2. Do not suddenly lift the engine cover. Remove the cover slowly by detaching the clips on by one.
    3. Lift area A shown in the illustration particularly slowly because there is a cowl on the top of the area around A. Failure to do so may damage the cover.


2. REMOVE UPPER RADIATOR AIR DEFLECTOR


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 6 clips and upper radiator air deflector.



3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
ПРЕДОСТЕРЕЖЕНИЕ:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.


4. REMOVE NO. 1 ENGINE UNDER COVER


5. DRAIN ENGINE COOLANT

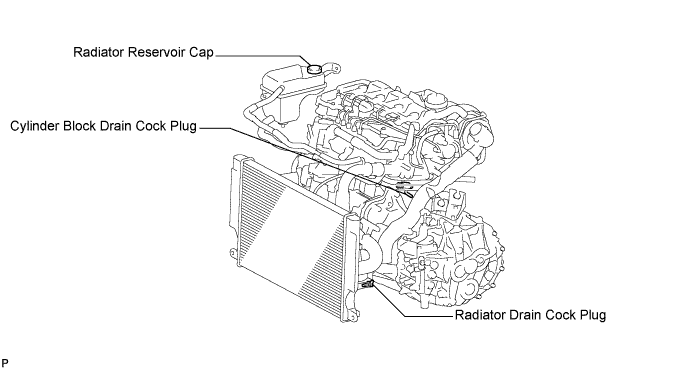

  1. Loosen the radiator drain cock plug.

    УКАЗАНИЕ:
    Collect the coolant in a container and dispose of it according to the regulations in your area.

  1. Remove the radiator reservoir cap.

    ПРЕДОСТЕРЕЖЕНИЕ:
    Do not remove the radiator reservoir cap while the engine and radiator are still hot.
    Pressurized, hot engine coolant and steam may be released and cause serious burns.


  1. Loosen the cylinder block drain cock plug.

    УКАЗАНИЕ:
    The plug is on the backside of the generator on the exhaust manifold side.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Смазки 2Ad-Fhv.Система Смазки.Масляный Радиатор Двигателя Снятие



6. DISCONNECT VACUUM TRANSMITTING HOSE ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

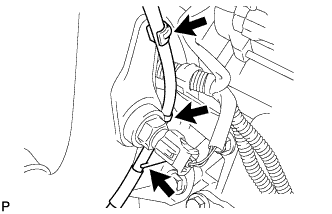

  1. Disengage the vacuum transmitting hose from the 3 clamps.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Disconnect the vacuum transmitting hose from the No. 2 air tube.



7. REMOVE NO. 3 AIR HOSE


  1. Remove the No. 3 air hose.



      COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Смазки 2Ad-Fhv.Система Смазки.Масляный Радиатор Двигателя Снятие

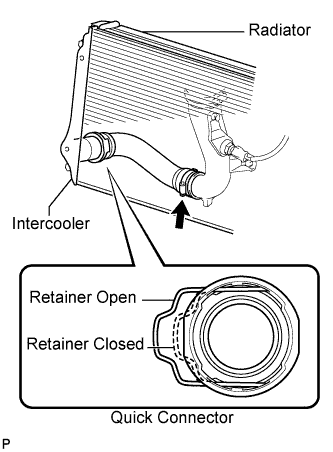

    1. Open the retainer and remove the No. 3 air hose from the No. 2 air tube and intercooler.



8. REMOVE NO. 4 AIR HOSE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Disconnect the sensor connector.

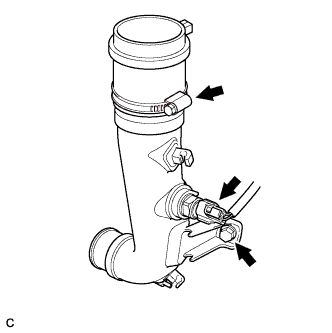

  1. Remove the bolt from the No. 2 air tube.

  1. Loosen the 2 hose clamps.

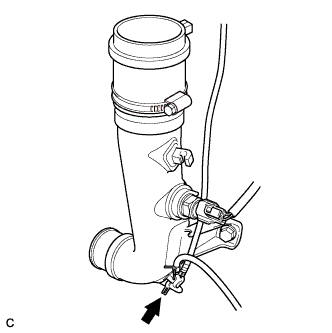

  1. Disconnect the No. 2 air tube from the No. 4 air hose.

  1. Remove the No. 4 air hose from the diesel throttle body.



9. REMOVE DIESEL THROTTLE BODY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Disconnect the throttle position sensor connector.

  1. Disconnect the throttle motor connector.

  1. Remove the 2 nuts and 2 bolts, and then remove the diesel throttle body and gasket.



10. REMOVE OIL DIPSTICK GUIDE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 2 bolts and oil dipstick guide.

  1. Remove the O-ring from the dipstick guide.



11. REMOVE NO. 1 WATER BY-PASS HOSE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Loosen the 2 clips and remove the water by-pass hose.



12. REMOVE OIL COOLER ASSEMBLY

  1. Remove the No. 1 cylinder block insulator.

  1. Disconnect the connector from the oil pressure switch.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 5 bolts, engine oil cooler, and 3 O-rings.



13. REMOVE NO. 3 WATER BY-PASS PIPE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 2 bolts, O-ring and by-pass pipe.



14. REMOVE NO. 1 TURBO OIL PIPE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 2 union bolts, 2 gaskets and oil pipe.



15. REMOVE NO. 1 OIL COOLER BRACKET


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Смазки 2Ad-Fhv.Система Смазки.Масляный Радиатор Двигателя Снятие

  1. Remove the 6 bolts, nut, and oil cooler bracket.

  1. Remove the 3 O-rings.
