DTC P0724 Brake Switch "B" Circuit High


DESCRIPTION

The purpose of this circuit is to prevent the engine from stalling while driving in the lock-up condition when the brakes are suddenly applied.
When the brake pedal is depressed, this switch sends a signal to the ECM. Then the ECM cancels the operation of the lock-up clutch while braking is in progress.

DTC No.
DTC Detection Condition
Trouble Area
P0724
Stop light switch remains ON even when vehicle is driven in GO (30 km/h (18.63 mph) or more) and STOP (less than 3 km/h (1.86 mph)) pattern 5 times (2 trip detection logic)
  1. Short in stop light switch signal circuit
  2. Stop light switch
  3. ECM

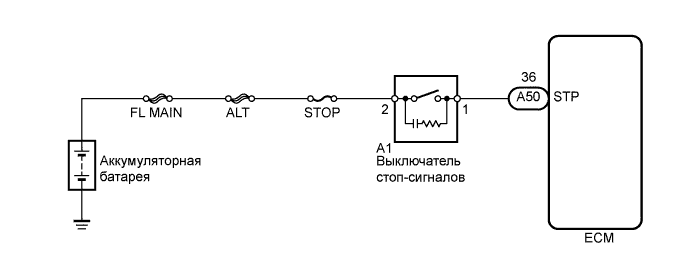

WIRING DIAGRAM


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi. Dtc P0724 Brake Switch B Circuit High


INSPECTION PROCEDURE

УКАЗАНИЕ:
  1. Using the intelligent tester's Data List allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the Data List early in troubleshooting is one way to save time.
  2. Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
1.READ VALUE USING INTELLIGENT TESTER (STARTER SIGNAL)

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch on (IG).

  1. Turn the tester on.

  1. Select the following menu items: Powertrain / Engine and ECT / Data List / Stop Light Switch.

  1. Read the value displayed on the tester when the depressed and released brake pedal.

    OK:
    Brake Pedal
    		Display
    Released
    		OFF
    Depressed
    		ON


NG
Перейдите к шагу 2
OK

CHECK FOR INTERMITTENT PROBLEMS (Нажмите здесь)

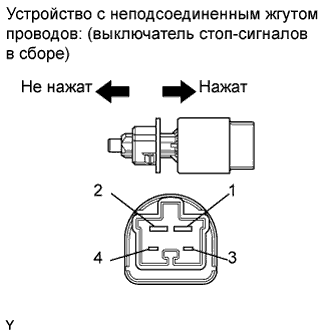

2.INSPECT STOP LIGHT SWITCH ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi. Dtc P0724 Brake Switch B Circuit High

  1. Disconnect the stop light switch assembly connector.

  1. Remove the stop light switch assembly.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Switch Position
    		Specified Condition
    1 - 2
    		Switch pin not pushed
    		Below 1 Ω
    Switch pin pushed
    		10 kΩ or higher
    3 - 4
    		Switch pin not pushed
    		10 kΩ or higher
    Switch pin pushed
    		Below 1 Ω

  1. Reinstall the stop light switch assembly.

  1. Reconnect the stop light switch assembly connector.



NG
REPLACE STOP LIGHT SWITCH ASSEMBLY
OK


3.CHECK HARNESS AND CONNECTOR (ECM - STOP LIGHT SWITCH ASSEMBLY)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi. Dtc P0724 Brake Switch B Circuit High

  1. Measure the voltage of the wire harness side connector.

    1. Disconnect the ECM connector.

    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage:
      Tester Connection
      		Condition
      		Specified Condition
      A50-36 (STP) - Body ground
      		Brake pedal is depressed
      		9 to 14 V
      A50-36 (STP) - Body ground
      		Brake pedal is released
      		Below 1.5 V

    3. Reconnect the ECM connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - STOP LIGHT SWITCH ASSEMBLY)
OK

REPLACE ECM (Нажмите здесь)
