  1. ПРОВЕРКА РУЧНОГО ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ

Система Автоматической Трансмиссии -- Проверка Ручного Переключения Передач



ПРОВЕРКА РУЧНОГО ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ
The purpose of this manual shifting test is to determine whether a problem is caused by either mechanical or electrical factors. Disconnecting the transmission wire disables electrically-controlled automatic gear shifting. In this case, operating the shift lever is the only way to shift the transaxle gear. If the gear is not changed by shift lever operation, it is assumed that there is a mechanical problem.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Автоматическая Трансмиссия U341E.Система Автоматической Трансмиссии.Система Автоматической Трансмиссии Проверка Ручного Переключения Передач

  1. Turn the ignition switch off.

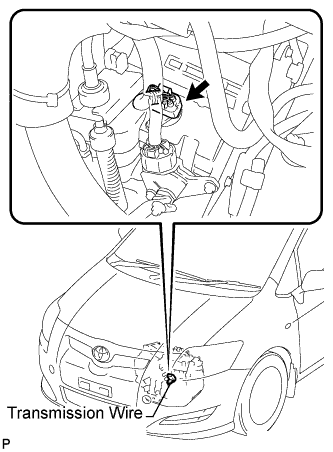

  2. Disconnect the transmission wire connector.

  3. Warm up the engine.

  4. Drive the vehicle.

  5. Check the transaxle operation when the shift lever is moved into L, 2, 3 and D positions.

    Standard:
    Shift Lever
    		Operation
    L to 2
    		Shifting does not occur
    2 to 3
    		Shifting does not occur
    3 to D
    		Shifting does not occur
    D to 3
    		Shifting does not occur
    3 to 2
    		Shifting does not occur
    2 to L
    		Shifting does not occur

  6. Turn the ignition switch off.

  7. Connect the transmission wire connector.

  8. Clear DTCs (See page Нажмите здесь).

УКАЗАНИЕ:
When the transmission wire is disconnected, the transaxle gear will be set as listed below.
Shift Lever
Gear
P
Parking
R
Reverse
N
Neutral
D
3rd
3
3rd
2
3rd
L
3rd
