DESCRIPTION

WIRING DIAGRAM

INSPECTION PROCEDURE

CHECK GLOW PLUG RELAY TERMINAL VOLTAGE (GREL TERMINAL)

INSPECT GLOW PLUG RELAY

INSPECT FUSIBLE LINK BLOCK ASSEMBLY (GLOW PLUG)

INSPECT GLOW PLUG ASSEMBLY (RESISTANCE)

CHECK GLOW PLUG ASSEMBLY (INSTALLATION)

CHECK HARNESS AND CONNECTOR (GLOW PLUG RELAY - GLOW PLUG - BATTERY AND BODY GROUND)

CHECK HARNESS AND CONNECTOR (GLOW PLUG RELAY - ECM AND BODY GROUND)

DESCRIPTION

УКАЗАНИЕ:

1. These troubleshooting procedures are for: 1) difficult starting engine in cold weather, and 2) difficulty driving / vehicle malfunctions in cold weather immediately after the engine is started.

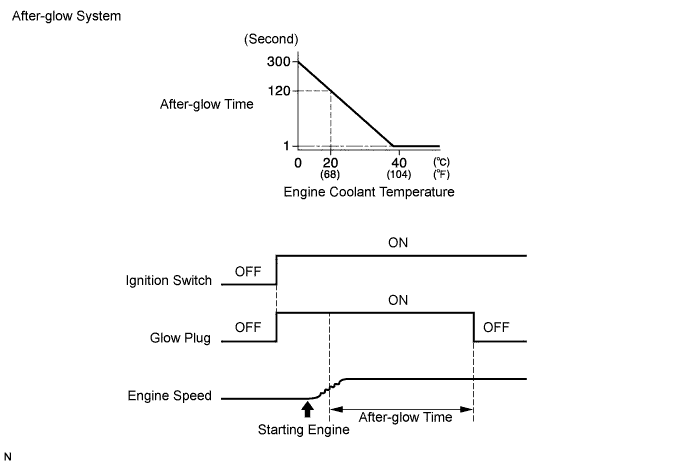

2. After the engine is started, the ECM performs an "after-glow" for a certain period of time. In proportion to the actual engine coolant temperature, the time period varies. The after-glow reduces diesel engine knocking, white smoke emissions and engine noises when the engine is cold.

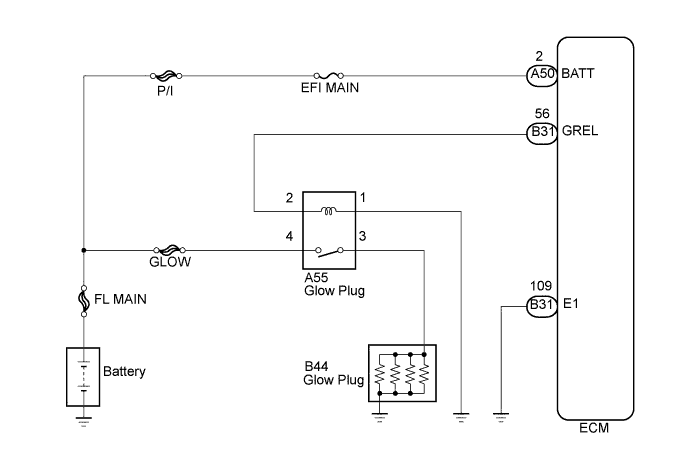

WIRING DIAGRAM

INSPECTION PROCEDURE

ПРИМЕЧАНИЕ:

After replacing the ECM, the new ECM needs registration (See page Нажмите здесь) and initialization (See page Нажмите здесь).

1. Remove the glow plug relay.


2. Turn the ignition switch on (IG).


3. Measure the voltage according to the value(s) in the table below.


   Standard voltage:

   Tester Connection	Switch Condition	Specified Condition
   A55-2 - Body ground	Ignition switch on (IG)	11 to 14 V

4. Reinstall the glow plug relay.


1. Remove the glow plug relay.


2. Measure the resistance according to the value(s) in the table below.


   Standard resistance:

   Tester Connection	Condition	Specified Condition
   3 - 4	Battery voltage is not applied between terminals 1 and 2	10 kΩ or higher
   3 - 4	Battery voltage is applied between terminals 1 and 2	Below 1 Ω

3. Reinstall the glow plug relay.


1. Remove the fusible link block assembly from the engine room relay block.


2. Measure the resistance according to the value(s) in the table below.


   Standard resistance:

   Tester Connection	Condition	Specified Condition
   1G-1 - 1O-1	Always	Below 1 Ω

3. Reinstall the fusible link block assembly.


1. Disconnect the glow plug wire.


2. Measure the resistance according to the value(s) in the table below.


   Standard resistance:

   Tester Connection	Condition	Specified Condition
   Glow plug terminal - Body ground	20°C (68°F)	Approximately 0.95 Ω

   УКАЗАНИЕ:

   If any of the glow plugs has an open circuit, the engine power will be insufficient only when the engine is cold.

   ПРИМЕЧАНИЕ:

   1. Exercise extreme care not to damage the glow plug pipes. Damaging them could cause an open circuit, or shorten the life of the glow plugs.

   2. Keep the glow plugs free of oil and fuel while cleaning.

   3. Wipe any oil off of the terminal and Bakelite washer with a clean, dry cloth during inspection.

   4. Do not apply more than 11 V to the glow plugs as it may cause an open circuit.


3. Reconnect the glow plug wire.


1. Check the glow plug installation.


   OK:

   The glow plugs are installed securely.


Момент затяжки:

12 Н*м{125 кгс*см, 9 фунт-сила-футов}

1. Remove the glow plug relay.


2. Disconnect the glow plug connector.


3. Measure the resistance according to the value(s) in the table below.


   Standard resistance:

   Tester Connection	Condition	Specified Condition
   A55-3 - B44-1	Always	Below 1 Ω
   A55-4 - Positive (+) battery terminal cabled	Always	Below 1 Ω
   A55-1 - Body ground	Always	Below 1 Ω

4. Reinstall the glow plug relay.


5. Reconnect the ECM connector.


1. Remove the glow plug relay.


2. Disconnect the ECM connector.


3. Measure the resistance according to the value(s) in the table below.


   Standard resistance (Check for open):

   Tester Connection	Condition	Specified Condition
   A55-2 - B31-56 (GREL)	Always	Below 1 Ω

   Standard resistance (Check for short):

   Tester Connection	Condition	Specified Condition
   A55-2 or B31-56 (GREL) - Body ground	Always	10 kΩ or higher

4. Reinstall the glow plug relay.


5. Reconnect the ECM connector.
