Dtc P0100 Mass Or Volume Air Flow Circuit. Corolla Auris
Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
DESCRIPTION
WIRING DIAGRAM
INSPECTION PROCEDURE
READ VALUE USING INTELLIGENT TESTER (MASS AIR FLOW RATE)
INSPECT MASS AIR FLOW METER (POWER SOURCE VOLTAGE)
INSPECT MASS AIR FLOW METER (VG VOLTAGE)
CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)
INSPECT FUSE (EFI NO. 1)
CHECK HARNESS AND CONNECTOR (SENSOR GROUND)
CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)
DTC P0100 Mass or Volume Air Flow Circuit |
DTC P0102 Mass or Volume Air Flow Circuit Low Input |
DTC P0103 Mass or Volume Air Flow Circuit High Input |
DESCRIPTION

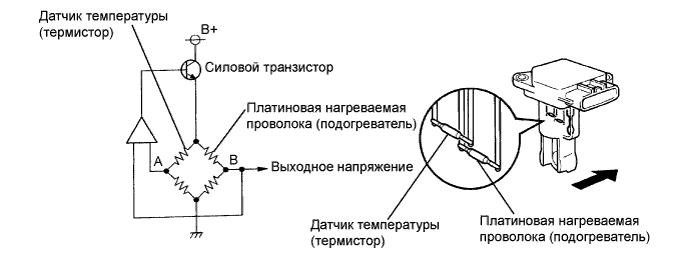

The mass air flow meter is a sensor that measures the amount of air flowing through the throttle valve.The ECM uses this information to determine the fuel injection time and to provide the appropriate air fuel ratio.Inside the mass air flow meter, there is a heated platinum wire which is exposed to the flow of intake air.By applying a specific electrical current to the wire, the ECM heats it to a given temperature. The flow of incoming air cools both the wire and an internal thermistor, affecting their resistance. To maintain a constant current value, the ECM varies the voltage applied to these components in the mass air flow meter. The voltage level is proportional to the air flow through the sensor, and the ECM uses it to calculate the intake air volume.The circuit is constructed so that the platinum hot wire and the temperature sensor create a bridge circuit, and the power transistor is controlled so that the potentials of A and B remain equal to maintain the predetermined temperature.- УКАЗАНИЕ:
- When any of these DTCs are set, the ECM enters fail-safe mode. During fail-safe mode, the ignition timing is calculated by the ECM, according to the engine RPM and throttle valve position. Fail-safe mode continues until a pass condition is detected.
DTC No.
| DTC Detection Condition
| Trouble Area
|
P0100
| Mass air flow meter voltage is less than 0.2 V, or more than 4.9 V for 3 seconds (1-trip detection logic)
| - Open or short in mass air flow meter circuit
- Mass air flow meter
- ECM
|
P0102
| Mass air flow meter voltage is less than 0.2 V for 3 seconds (1-trip detection logic)
| - Open or short in mass air flow meter circuit
- Mass air flow meter
- ECM
|
P0103
| Mass air flow meter voltage is more than 4.9 V for 3 seconds (1-trip detection logic)
| - Open or short in mass air flow meter circuit
- Mass air flow meter
- ECM
|
- УКАЗАНИЕ:
- When any of these DTCs are set, check the air-flow rate by selecting the following menu items on the intelligent tester: Powertrain / Engine and ECT / Data List / MAF.
Mass Air Flow Rate (g/sec.)
| Malfunction
|
Approximately 0.0
| - Open in mass air flow meter power source circuit
- Open or short in VG circuit
|
271.0 or more
| - Open in E2G circuit
|
WIRING DIAGRAM
INSPECTION PROCEDURE
- УКАЗАНИЕ:
- Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
1.READ VALUE USING INTELLIGENT TESTER (MASS AIR FLOW RATE) |
Connect the intelligent tester to the DLC3.
Start the engine and turn the tester on.
Select the following menu items: Powertrain / Engine and ECT / Data List / MAF.
Read the values displayed on the tester.
- Result:
Result
| Proceed to
|
Mass air flow rate is 0.0
| A
|
Mass air flow rate is 271.0 or more
| B
|
Mass air flow rate is between 1.0 and 270.0 (*1)
| C
|
*1: The value must change when the throttle valve is open or closed with the engine running.
2.INSPECT MASS AIR FLOW METER (POWER SOURCE VOLTAGE) |

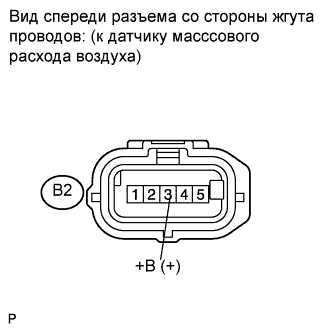

Disconnect the mass air flow meter connector.
Turn the ignition switch on (IG).
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
Tester Connection
| Switch Condition
| Specified Condition
|
B2-3 (+B) - Body ground
| Ignition switch on (IG)
| 9 to 14 V
|
Reconnect the mass air flow meter connector.

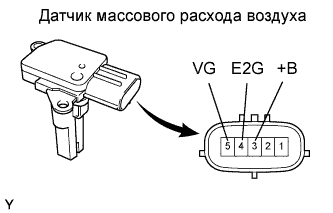

3.INSPECT MASS AIR FLOW METER (VG VOLTAGE) |
Inspect the output voltage.
Disconnect the mass air flow meter connector.
Apply battery voltage across terminals +B and E2G.
Connect the positive (+) tester probe to terminal VG, and the negative (-) tester probe to terminal E2G.
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
Tester Connection
| Condition
| Specified Condition
|
5 (VG) - 4 (E2G)
| Apply battery voltage across terminal +B and E2G
| 0.2 to 4.9 V
|
Reconnect the mass air flow meter connector.

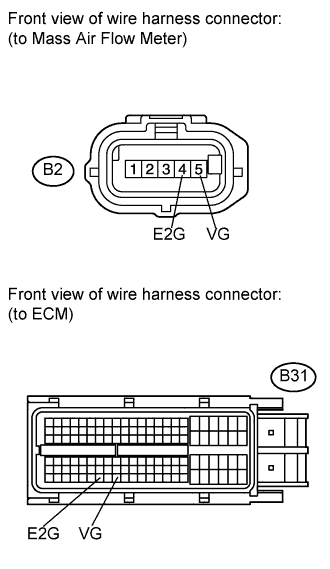

4.CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM) |
Disconnect the mass air flow meter connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance (Check for open):
Tester Connection
| Condition
| Specified Condition
|
B2-5 (VG) - B31-118 (VG)
| Always
| Below 1 Ω
|
B2-4 (E2G) - B31-116 (E2G)
| Always
| Below 1 Ω
|
- Standard resistance (Check for short):
Tester Connection
| Condition
| Specified Condition
|
B2-5 (VG) or B31-118 (VG) - Body ground
| Always
| 10 kΩ or higher
|
Reconnect the mass air flow meter connector.
Reconnect the ECM connector.
| REPAIR OR REPLACE HARNESS OR CONNECTOR (MASS AIR FLOW METER - ECM) |
|
|

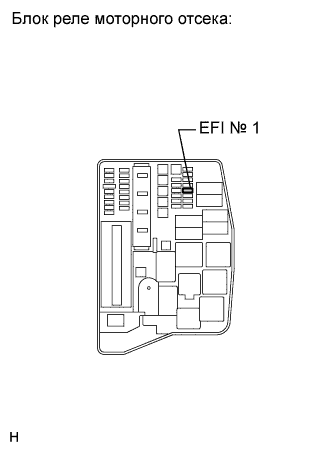

5.INSPECT FUSE (EFI NO. 1) |
Remove the EFI No. 1 fuse from engine room relay block.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
EFI No. 1 fuse
| Always
| Below 1 Ω
|
Reinstall the EFI No. 1 fuse.
OK |
|
|
|
REPAIR OR REPLACE HARNESS OR CONNECTOR (MASS AIR FLOW METER - INTEGRATION RELAY) |
|

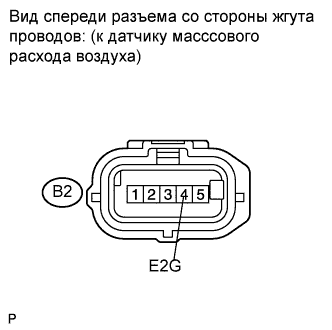

6.CHECK HARNESS AND CONNECTOR (SENSOR GROUND) |
Disconnect the mass air flow meter connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|

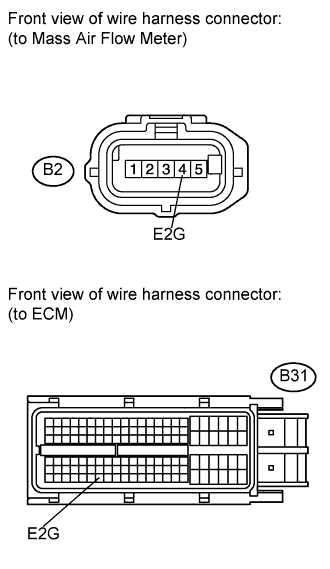

B2-4 (E2G) - Body ground
| Always
| Below 1 Ω
|
Reconnect the mass air flow meter connector.
7.CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM) |
Disconnect the mass air flow meter connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance (Check for open):
Tester Connection
| Condition
| Specified Condition
|
B2-4 (E2G) - B31-116 (E2G)
| Always
| Below 1 Ω
|
- Standard resistance (Check for short):
Tester Connection
| Condition
| Specified Condition
|
B2-4 (E2G) or B31-116 (E2G) - Body ground
| Always
| 10 kΩ or higher
|
Reconnect the mass air flow meter connector.
Reconnect the ECM connector.
| REPAIR OR REPLACE HARNESS OR CONNECTOR (MASS AIR FLOW METER - ECM) |
|
|
