Термостат Установка. Corolla Auris

Install a new gasket on the thermostat.

Install the thermostat to the water inlet.

ПРИМЕЧАНИЕ:

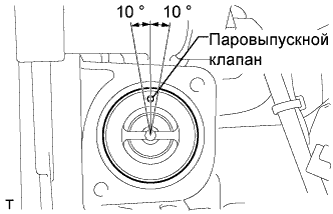

The jiggle valve may be set within 10° on either side of the prescribed position.

Install the water inlet with the 2 nuts.

Момент затяжки:

10 Н*м{102 кгс*см, 7 фунт-сила-футов}

Tighten the radiator drain cock plug.

Tighten the cylinder block drain cock plug.

Момент затяжки:

13 Н*м{130 кгс*см, 9 фунт-сила-футов}

Add TOYOTA Super Long Life Coolant (SLLC) to the radiator reservoir filler opening.

Standard capacity:

Item	Capacity
Engine coolant	for manual transaxle: 5.6 liters (5.9 US qts, 4.9 lmp. qts)
	for automatic transaxle: 5.5 liters (5.8 US qts, 4.8 lmp. qts)

УКАЗАНИЕ:

1. TOYOTA vehicles are filled with TOYOTA SLLC at the factory. In order to avoid damage to the engine cooling system and other technical problems, only use TOYOTA SLLC or similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, non-borate coolant with long-life hybrid organic acid technology (coolant with long-life hybrid organic acid technology consists of a combination of low phosphates and organic acids).

2. Contact your TOYOTA dealer for further details.


ПРИМЕЧАНИЕ:

Never use water as a substitute for engine coolant.

Remove the radiator cap and add coolant to line B of the reservoir tank.

Squeeze the inlet and outlet radiator hoses several times by hand, and then check the level of the coolant.
If the coolant level is low, add coolant.

Install the cap and valve, and warm up the engine sufficiently.

Bleed air from the cooling system.

ПРИМЕЧАНИЕ:

1. Before starting the engine, turn the A/C switch OFF.

2. Adjust the air conditioner set temperature to MAX (HOT).

3. Adjust the air conditioner set blower to Lo.


1. Warm up the engine until the thermostat opens. While the thermostat is open, allow the coolant to circulate for several minutes.


   УКАЗАНИЕ:

   The thermostat opening timing can be confirmed by squeezing the inlet radiator hose by hand, and sensing vibrations when the engine coolant starts to flow inside the hose.

   ПРЕДОСТЕРЕЖЕНИЕ:

   When squeezing the radiator hose:

   1. Wear protective gloves.

   2. Be careful as the radiator hoses are hot.

   3. Keep your hands away from the radiator fan.


2. After the engine has warmed up, run the engine using the following cycle for at least 7 minutes: at 3000 rpm for 5 seconds, at idle speed for 45 seconds. (Repeat this cycle at least 8 times.)


3. Squeeze the inlet and outlet radiator hoses several times by hand to bleed air from the system.


   ПРЕДОСТЕРЕЖЕНИЕ:

   When squeezing the radiator hose:

   1. Wear protective gloves.

   2. Be careful as the radiator hoses are hot.

   3. Keep your hands away from the radiator fan.


After the engine has cooled down, check that the coolant level is between FULL and LOW.
If the coolant level is low, add coolant to the FULL line on the reservoir tank.

Fill the radiator assembly with engine coolant, then attach a radiator cap tester.

Pump it to 108 kPa (1.1 kgf/cm², 15.6 psi), then check that the pressure does not drop.
If the pressure drops, check the hoses, radiator assembly and water pump assembly for leakage. If there are no signs or traces of external engine coolant leakage, check the heater core, cylinder block and head.
