Dtc P0115 Engine Coolant Temperature Circuit Malfunction. Corolla Auris

Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Управления Двигателем 2Zr-Fe. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

DESCRIPTION

WIRING DIAGRAM

INSPECTION PROCEDURE

READ VALUE USING INTELLIGENT TESTER (ENGINE COOLANT TEMPERATURE)

READ VALUE USING INTELLIGENT TESTER (CHECK FOR OPEN IN WIRE HARNESS)

CHECK HARNESS AND CONNECTOR (ENGINE COOLANT TEMPERATURE SENSOR - ECM)

READ VALUE USING INTELLIGENT TESTER (CHECK FOR SHORT IN WIRE HARNESS)

CHECK HARNESS AND CONNECTOR (ENGINE COOLANT TEMPERATURE SENSOR - ECM)

DTC P0115 Engine Coolant Temperature Circuit Malfunction

DTC P0117 Engine Coolant Temperature Circuit Low Input

DTC P0118 Engine Coolant Temperature Circuit High Input


DESCRIPTION

A thermistor, whose resistance value varies according to the engine coolant temperature, is built into the engine coolant temperature sensor.
The structure of the sensor and its connection to the ECM are the same as those of the intake air temperature sensor.
УКАЗАНИЕ:
When any of DTCs P0115, P0117 and P0118 are set, the ECM enters fail-safe mode. During fail-safe mode, the engine coolant temperature is estimated to be 80°C (176°F) by the ECM. Fail-safe mode continues until a pass condition is detected.

DTC No.
Proceed to
DTC Detection Condition
Trouble Area
P0115
Step 1
Open or short in engine coolant temperature sensor circuit for 0.5 seconds
(1-trip detection logic)
  1. Open or short in engine coolant temperature sensor circuit
  1. Engine coolant temperature sensor
  1. ECM
P0117
Step 4
Short in engine coolant temperature sensor circuit for 0.5 seconds
(1-trip detection logic)
  1. Short in engine coolant temperature sensor circuit
  1. Engine coolant temperature sensor
  1. ECM
P0118
Step 2
Open in engine coolant temperature sensor circuit for 0.5 seconds
(1-trip detection logic)
  1. Open in engine coolant temperature sensor circuit
  1. Engine coolant temperature sensor
  1. ECM
УКАЗАНИЕ:
When any of these DTCs are set, check the engine coolant temperature by selecting the following menu items on the intelligent tester: Powertrain / Engine and ECT / Data List / Coolant Temp.

Temperature Displayed
Malfunction
-40°C (-40°F)
Open circuit
140°C (284°F) or higher
Short circuit

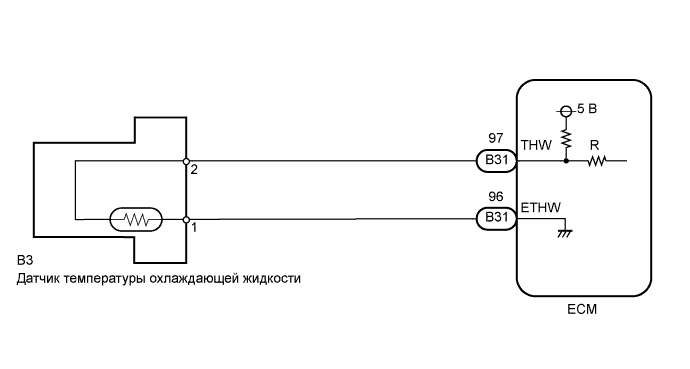

WIRING DIAGRAM


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi. Dtc P0115 Engine Coolant Temperature Circuit Malfunction


INSPECTION PROCEDURE

УКАЗАНИЕ:
Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
1.READ VALUE USING INTELLIGENT TESTER (ENGINE COOLANT TEMPERATURE)

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch on (IG) and turn the tester on.

  1. Select the following menu items: Powertrain / Engine and ECT / Data List / Coolant Temp.

  1. Read the value displayed on the tester.

    Standard:
    Between 80°C and 100°C (176°F and 212°F) with warm engine.

    Result:

    Result
    		Proceed to
    Temperature displayed is -40°C (-40°F)
    		A
    Temperature displayed is 140°C (284°F) or higher
    		B
    Temperature displayed is between 80°C and 100°C (176°F and 212°F)
    		C
    УКАЗАНИЕ:
    1. If there is an open circuit, the intelligent tester indicates -40°C (-40°F).
    1. If there is a short circuit, the intelligent tester indicates 140°C (284°F) or higher.


B
Перейдите к шагу 4

C
CHECK FOR INTERMITTENT PROBLEMS (Нажмите здесь)
A


2.READ VALUE USING INTELLIGENT TESTER (CHECK FOR OPEN IN WIRE HARNESS)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi. Dtc P0115 Engine Coolant Temperature Circuit Malfunction

  1. Confirm good connection at the engine coolant temperature sensor.

  1. Disconnect the engine coolant temperature sensor connector.

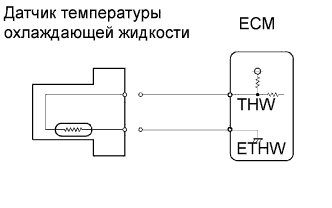

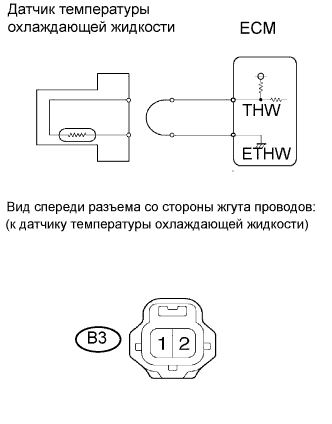

  1. Connect terminals 1 and 2 of the engine coolant temperature sensor connector on the wire harness side.

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch on (IG) and turn the tester on.

  1. Select the following menu items: Powertrain / Engine and ECT / Data List / Coolant Temp.

  1. Read the value displayed on the tester.

    Standard:
    140°C (284°F) or higher.

  1. Reconnect the engine coolant temperature sensor connector.



NG
Перейдите к шагу 3
OK

REPLACE ENGINE COOLANT TEMPERATURE SENSOR (Нажмите здесь)

3.CHECK HARNESS AND CONNECTOR (ENGINE COOLANT TEMPERATURE SENSOR - ECM)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi. Dtc P0115 Engine Coolant Temperature Circuit Malfunction

  1. Disconnect the engine coolant temperature sensor connector.

  1. Disconnect the ECM connector.

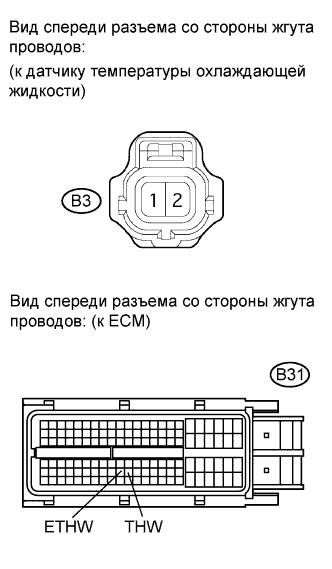

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    B3-2 - B31-97 (THW)
    		Always
    		Below 1 Ω
    B3-1 - B31-96 (ETHW)
    		Always
    		Below 1 Ω

  1. Reconnect the engine coolant temperature sensor connector.

  1. Reconnect the ECM connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ENGINE COOLANT TEMPERATURE SENSOR - ECM)
OK

REPLACE ECM (Нажмите здесь)

4.READ VALUE USING INTELLIGENT TESTER (CHECK FOR SHORT IN WIRE HARNESS)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi. Dtc P0115 Engine Coolant Temperature Circuit Malfunction

  1. Disconnect the engine coolant temperature sensor connector.

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch on (IG) and turn the tester on.

  1. Select the following menu items: Powertrain / Engine and ECT / Data List / Coolant Temp.

  1. Read the value displayed on the tester.

    Standard:
    -40°C (-40°F)

  1. Reconnect the engine coolant temperature sensor connector.



NG
Перейдите к шагу 5
OK

REPLACE ENGINE COOLANT TEMPERATURE SENSOR (Нажмите здесь)

5.CHECK HARNESS AND CONNECTOR (ENGINE COOLANT TEMPERATURE SENSOR - ECM)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi. Dtc P0115 Engine Coolant Temperature Circuit Malfunction

  1. Disconnect the engine coolant temperature sensor connector.

  1. Disconnect the ECM connector.

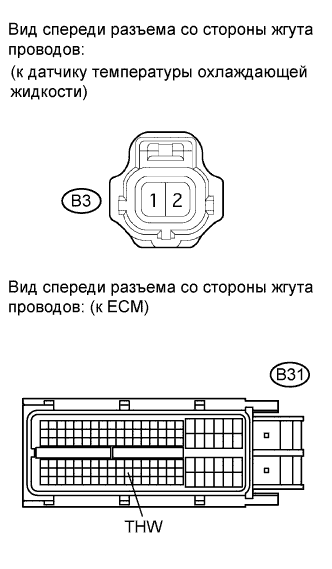

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    B3-2 or B31-97 (THW) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the engine coolant temperature sensor connector.

  1. Reconnect the ECM connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ENGINE COOLANT TEMPERATURE SENSOR - ECM)
OK

REPLACE ECM (Нажмите здесь)
