Система Ecd -- Данные Фиксированного Набора Параметров |
| DESCRIPTION |
- The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame date can be helpful in determining whether the vehicle was running or stopped, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
- УКАЗАНИЕ:
- If it is impossible to duplicate the problem even though a DTC is detected, confirm the freeze frame data.

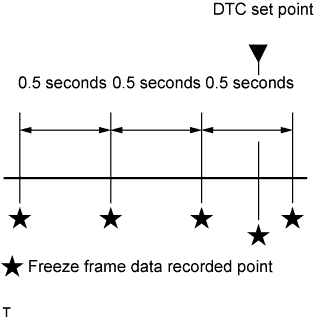

The ECM records engine conditions in the form of freeze frame data every 0.5 seconds. Using an intelligent tester, 5 separate sets of freeze frame data can be checked.
- 3 data sets before the DTC was set.
- 1 data set when the DTC was set.
- 1 data set after the DTC was set.
- These data sets can be used to simulate the condition of the vehicle around the time of the occurrence of the malfunction. The data may assist in identifying the cause of the malfunction, and in judging whether it was temporary or not.
| LIST OF FREEZE FRAME DATA |
| LABEL Injection Volume | Measurement Item/Range | Diagnostic Note |
| Injection Volume | Injection Volume | - |
| Engine SPD | Engine speed | - |
| PIM | Absolute pressure inside intake manifold | - |
| Coolant Temp | Engine coolant temperature | If -40°C (-40°F), sensor circuit is open If 140°C (284°F) or more, sensor circuit is shorted |
| Intake Air | Intake air temperature | If -40°C (-40°F), sensor circuit is open If 140°C (284°F) or more, sensor circuit is shorted |
| Accel Position | Absolute Accelerator Pedal Position (APP) | - |
| Vehicle SPD | Vehicle speed | Speed indicated on speedometer |
| Stop Light SW | Stop light switch | - |
| Elect Load SIG | Engine load signal | - |
| A/C SIG | A/C signal | - |
| Starter SIG | Starter signal | - |
| Heater Control Lever | Heater control lever | - |
| Common Rail Pressure | Common rail pressure | - |
| M-INJ/PILOT ON | M-INJ/PILOT ON | - |
| Pilot-Injection | Pilot-Injection | - |
| Engine Run Time | Accumulated engine running time | - |
