Roof Rack -- Removal |
- HINT:
- Use the same procedure for the RH and LH sides.
- The procedure listed below is for the LH side.

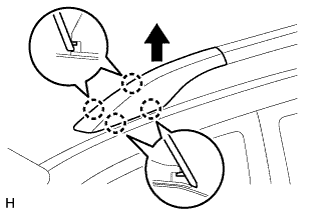

| 1. REMOVE FRONT ROOF RACK LEG COVER LH |
Detach the 4 claws and remove the front roof rack leg cover in the direction indicated by the arrow in the illustration.
 |
| 2. REMOVE REAR ROOF RACK LEG COVER LH |
Detach the 4 claws and remove the rear roof rack leg cover in the direction indicated by the arrow in the illustration.
 |
| 3. REMOVE CENTER ROOF RACK LEG COVER LH |
Detach the 2 claws and remove the center roof rack leg cover.
 |

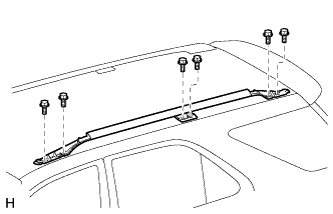

| 4. REMOVE ROOF RACK ASSEMBLY LH |
Remove the 6 bolts, and then remove the double-sided tape and roof rack.
 |
