Radiator Grille Disassembly


  1. REMOVE NO. 1 RADIATOR GRILLE SEAL

  2. REMOVE RADIATOR GRILLE MOULDING

  3. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

Radiator Grille -- Disassembly



1. REMOVE NO. 1 RADIATOR GRILLE SEAL


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Exterior.Radiator Grille.Radiator Grille Disassembly

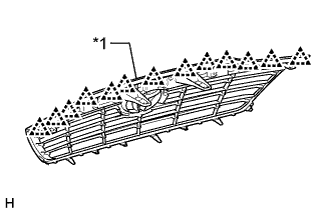

  1. Detach the 13 clips and remove the double-sided tape and No. 1 radiator grille seal.

    Text in Illustration
    *1
    		Double-sided Tape


2. REMOVE RADIATOR GRILLE MOULDING


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

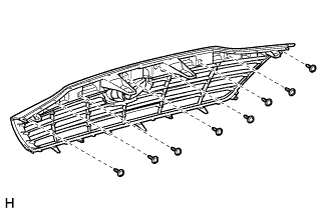

  1. Remove the 8 screws and radiator grille moulding.



3. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Detach the 3 claws and remove the radiator grille (or front panel) emblem.
