Cruise Control Main Switch Inspection
INSPECT CRUISE CONTROL MAIN SWITCH
Cruise Control Main Switch -- Inspection |
| 1. INSPECT CRUISE CONTROL MAIN SWITCH |
Measure the resistance according to the value(s) in the table below.

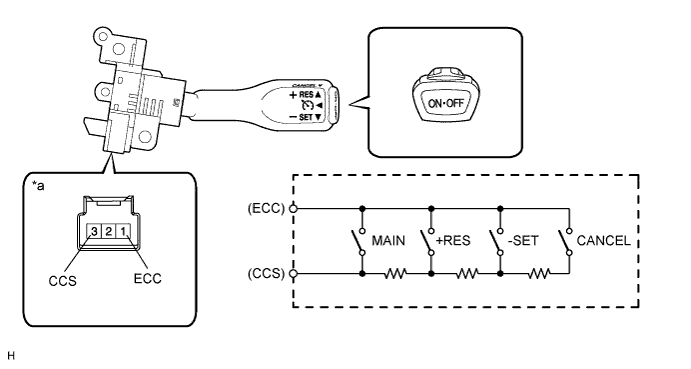

Text in Illustration*a
| Component without harness connected
(Cruise Control Main Switch)
| -
| -
|
- Standard Resistance:
Tester Connection
| Switch Condition
| Specified Condition
|
1 (ECC) - 3 (CCS)
| Neutral
| 1 MΩ or higher
|
1 (ECC) - 3 (CCS)
| +RES
| 235 to 245 Ω
|
1 (ECC) - 3 (CCS)
| -SET
| 617 to 643 Ω
|
1 (ECC) - 3 (CCS)
| CANCEL
| 1509 to 1571 Ω
|
1 (ECC) - 3 (CCS)
| Main switch off
| 1 MΩ or higher
|
1 (ECC) - 3 (CCS)
| Main switch on
| Below 2.5 Ω
|
If the result is not as specified, replace the cruise control main switch.
