Upper Instrument Panel -- Reassembly |
| 1. INSTALL NO. 4 INSTRUMENT PANEL CUSHION (for LH Side) |
Install a new cushion to the position shown in the illustration.
 |

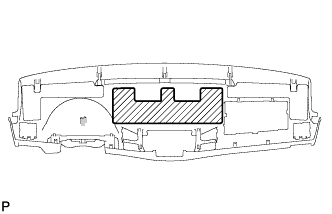

| 2. INSTALL NO. 2 INSTRUMENT PANEL CUSHION |
Install a new cushion to the position shown in the illustration.
 |
| 3. INSTALL NO. 4 INSTRUMENT PANEL CUSHION (for RH Side) |
Install a new cushion to the position shown in the illustration.
 |
| 4. INSTALL INSTRUMENT PANEL CUP HOLDER SUB-ASSEMBLY (for LH Side) |
Install the cup holder with the 3 screws.
 |
| 5. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY |
Attach the 4 claws to install the register.
 |
| 6. INSTALL INSTRUMENT PANEL CUP HOLDER SUB-ASSEMBLY (for RH Side) |
Install the cup holder with the 3 screws.
| 7. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY |
Attach the 4 claws to install the register.
| 8. INSTALL METER MOUNTING BRACKET |
Install the bracket with the screw.
