Amplifier Antenna Removal


  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE ROOF HEADLINING ASSEMBLY

  3. REMOVE ANTENNA ASSEMBLY WITH HOLDER (w/o Rear Air Conditioning System)

  4. REMOVE ANTENNA ASSEMBLY WITH HOLDER (w/ Rear Air Conditioning System)

Amplifier Antenna -- Removal



1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Toyota Fortuner RM000002HD2002X.html).


2. REMOVE ROOF HEADLINING ASSEMBLY

  1. Remove the roof headlining assembly (Toyota Fortuner RM000001JVR00CX.html).



3. REMOVE ANTENNA ASSEMBLY WITH HOLDER (w/o Rear Air Conditioning System)

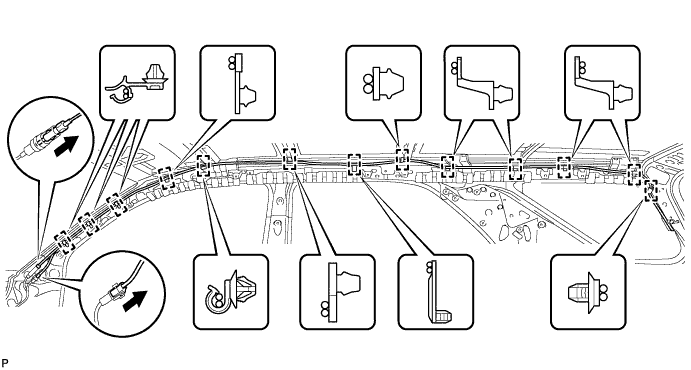

  1. w/ Roof Rail:



    1. Disconnect the connectors.


      Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Audio Visual.Amplifier Antenna.Amplifier Antenna Removal

    2. Detach the 13 clamps.



  1. w/o Roof Rail:



    1. Disconnect the connectors.


      Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Audio Visual.Amplifier Antenna.Amplifier Antenna Removal

    2. Detach the 13 clamps.



    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

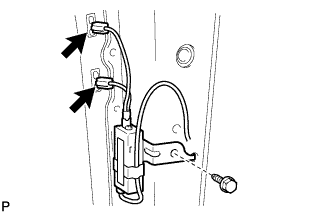

  1. Disconnect the 2 connectors.

  1. Remove the bolt and antenna.



4. REMOVE ANTENNA ASSEMBLY WITH HOLDER (w/ Rear Air Conditioning System)


  1. w/ Roof Rail:

    1. Disconnect the connector.



    2. Detach the 11 clamps.


      Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Audio Visual.Amplifier Antenna.Amplifier Antenna Removal



  1. w/o Roof Rail:

    1. Disconnect the connector.



    2. Detach the 11 clamps.


      Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Audio Visual.Amplifier Antenna.Amplifier Antenna Removal



    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Disconnect the connector.

  1. Remove the bolt and antenna.
