Amplifier Antenna Installation


  1. INSTALL WITH HOLDER ANTENNA ASSEMBLY

  2. INSTALL ROOF HEADLINING ASSEMBLY

  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Amplifier Antenna -- Installation



1. INSTALL WITH HOLDER ANTENNA ASSEMBLY


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Install the antenna with the bolt.

  1. Connect the connector.

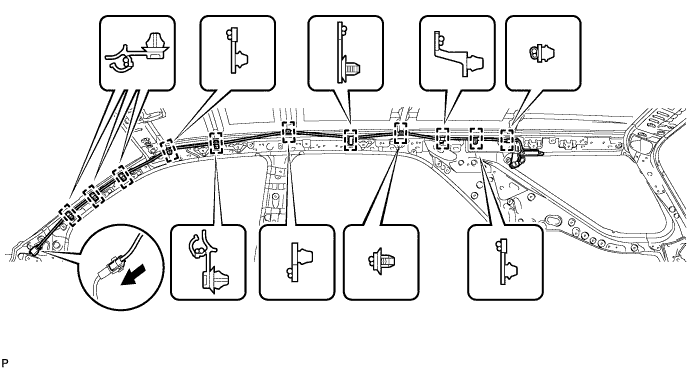

  1. w/ Roof Rail:



    1. Attach the 11 clamps.


      Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Audio Visual.Amplifier Antenna.Amplifier Antenna Installation

    2. Connect the connector.



  1. w/o Roof Rail:



    1. Attach the 11 clamps.


      Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Audio Visual.Amplifier Antenna.Amplifier Antenna Installation

    2. Connect the connector.



2. INSTALL ROOF HEADLINING ASSEMBLY
(Toyota Fortuner RM000001JVP00MX.html)


3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Toyota Fortuner RM000004W63000X.html).
