Amplifier Antenna Installation


  1. INSTALL ANTENNA ASSEMBLY WITH HOLDER (w/o Rear Air Conditioning System)

  2. INSTALL ANTENNA ASSEMBLY WITH HOLDER

  3. INSTALL ROOF HEADLINING ASSEMBLY

  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Amplifier Antenna -- Installation



1. INSTALL ANTENNA ASSEMBLY WITH HOLDER (w/o Rear Air Conditioning System)


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Install the antenna with the bolt.

  1. Connect the connectors.



  1. w/ Roof Rail:

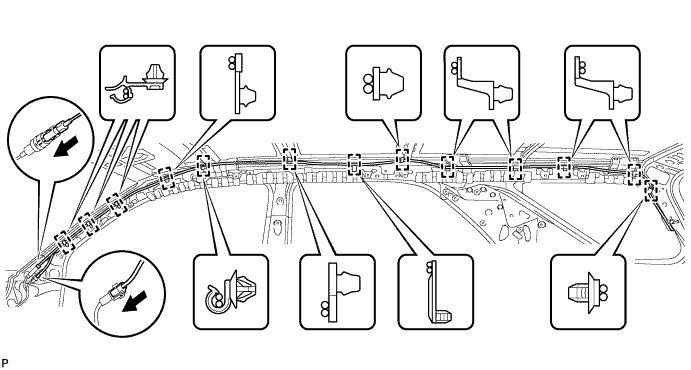

    1. Attach the 13 clamps.


      Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Audio Visual.Amplifier Antenna.Amplifier Antenna Installation

    2. Connect the connectors.



  1. w/o Roof Rail:



    1. Attach the 13 clamps.


      Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Audio Visual.Amplifier Antenna.Amplifier Antenna Installation

    2. Connect the connectors.



2. INSTALL ANTENNA ASSEMBLY WITH HOLDER


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Install the antenna with the bolt.

  1. Connect the connector.



  1. w/ Roof Rail:

    1. Attach the 11 clamps.



    2. Connect the connector.


      Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Audio Visual.Amplifier Antenna.Amplifier Antenna Installation



  1. w/o Roof Rail:

    1. Attach the 11 clamps.



    2. Connect the connector.


      Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Audio Visual.Amplifier Antenna.Amplifier Antenna Installation



3. INSTALL ROOF HEADLINING ASSEMBLY

  1. Install the roof headlining assembly (Toyota Fortuner RM000001JVP00CX.html).



4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Toyota Fortuner RM000002HD2002X.html).
