  1. INSPECT LIGHT CONTROL RHEOSTAT

Light Control Rheostat -- Inspection



1. INSPECT LIGHT CONTROL RHEOSTAT


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Meter.Light Control Rheostat.Light Control Rheostat Inspection

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    1 - 2
    		Position A
    		666.9 to 737.1 Ω
    Position B
    		220.4 to 243.6 Ω
    Position C
    		77.9 to 86.1 Ω
    Position D
    		Below 1 Ω
    If the result is not as specified, replace the light control rheostat.

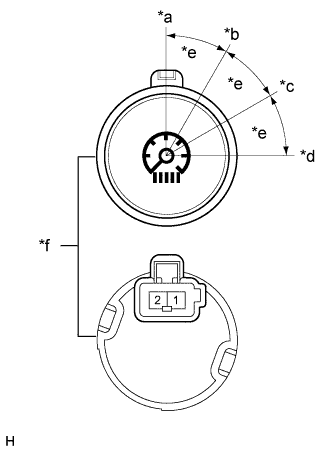

    Text in Illustration
    *a
    		Position A
    *b
    		Position B
    *c
    		Position C
    *d
    		Position D
    *e
    		30°
    *f
    		Component without harness connected
    (Light Control Rheostat)
