Lighting System Warning Light Circuit
DESCRIPTION
WIRING DIAGRAM
INSPECTION PROCEDURE
INSPECT COMBINATION METER ASSEMBLY
CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - BATTERY)
CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - HEADLIGHT LEVELING ECU ASSEMBLY)
LIGHTING SYSTEM - Warning Light Circuit |
DESCRIPTION
The headlight beam level control system warning light in the combination meter comes on for approximately 3 seconds when the ignition switch is turned to ON. The warning light also comes on when the headlight leveling ECU detects a malfunction.

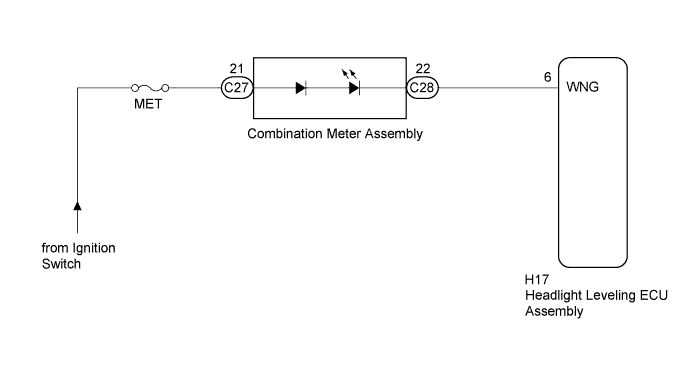

WIRING DIAGRAM
INSPECTION PROCEDURE
- NOTICE:
- Inspect the fuses for circuits related to this system before performing the following inspection procedure.
| 1.INSPECT COMBINATION METER ASSEMBLY |
Remove the combination meter assembly (Toyota Fortuner RM000000THS01WX.html).

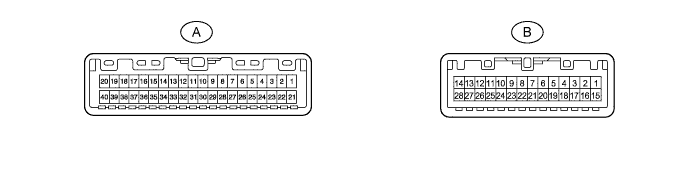

Connect the positive (+) lead from the battery to terminal A-21 and the negative (-) lead to terminal B-22.
Check that the warning light comes on.
- OK:
- Warning light comes on.
| 2.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - BATTERY) |
Disconnect the C27 combination meter connector.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection
| Switch Condition
| Specified Condition
|
C27-21 - Body ground
| Ignition switch ON
| 11 to 14 V
|
Ignition switch off
| Below 1 V
|

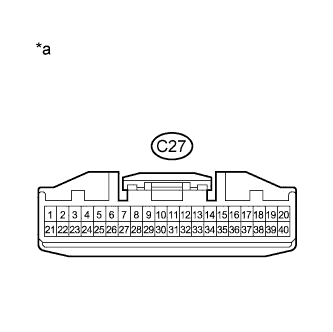

Text in Illustration*a
| Front view of wire harness connector
(to Combination Meter Assembly)
|
| | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
| 3.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - HEADLIGHT LEVELING ECU ASSEMBLY) |
Disconnect the C28 combination meter connector.
Disconnect the H17 headlight leveling ECU connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
H17-6 (WNG) - C28-22
| Always
| Below 1 Ω
|
H17-6 (WNG) - Body ground
| Always
| 10 kΩ or higher
|
| | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
