Extension Housing Oil Seal Replacement

Remove the 4 bolts and protector.

Remove the rear propeller shaft (Toyota Fortuner RM000000ZZ3008X_01_0002.html).

Using SST, remove the lock nut and companion flange (rear) in the same way as the companion flange (front).

SST

09330-00021
09950-40011(09951-04020,09952-04010,09953-04030,09954-04010,09955-04051,09957-04010,09958-04011)

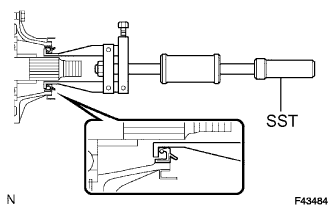

Using SST, tap out the oil seal.

SST

09308-00010

NOTICE:

Be careful not to damage the oil seal and extension housing contact surface.

Coat the lip of a new oil seal with MP grease.

Using SST and a hammer, tap in the oil seal until its surface is flush with the housing upper surface.

SST

09316-60011(09316-00011)

Apply gear oil to the connecting area of the companion flange and output shaft.

Install the companion flange to the output shaft.

Using SST to hold the companion flange, install a new lock nut.

SST

09330-00021
09950-40011(09951-04020,09952-04010,09953-04030,09954-04010,09955-04051,09957-04010,09958-04011)

Torque:

118 N*m{1,203 kgf*cm, 87 ft.*lbf}

Install the rear propeller shaft (Toyota Fortuner RM000000ZZ1008X_01_0002.html).

Install the protector with the 4 bolts.

Torque:

18 N*m{183 kgf*cm, 13 ft.*lbf}

Remove the case plug (for filler) and gasket.

Pour oil so that the oil level is between 0 to 5.0 mm (0 to 0.20 in.) from the bottom lip of the case plug (for filler) hole.

NOTICE:

1. When adding oil, pour it slowly.

2. Add oil a little at a time, waiting several minutes between each addition of oil.


Wait approximately 5 minutes and check that the oil level has not changed.

Install a new gasket and the case plug (for filler).

Torque:

37 N*m{377 kgf*cm, 27 ft.*lbf}
