Back Door Courtesy Switch Inspection


  1. INSPECT BACK DOOR LOCK ASSEMBLY

Back Door Courtesy Switch -- Inspection



1. INSPECT BACK DOOR LOCK ASSEMBLY


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

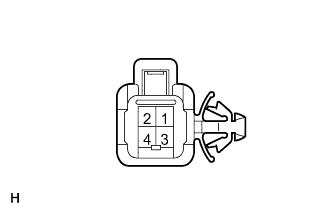

  1. Measure the resistance of the switch.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    1 - 2
    		Back door is closed
    		10 kΩ or higher
    1 - 2
    		Back door is opened
    		Below 1 Ω
    If the result is not as specified, replace the back door lock assembly.
