Headlight Leveling Switch Removal


  1. REMOVE NO. 1 SWITCH HOLE BASE

  2. REMOVE HEADLIGHT LEVELING SWITCH

Headlight Leveling Switch -- Removal


HINT:
  1. Use the same procedure for RHD and LHD vehicles.
  2. The procedure listed below is for LHD vehicles.


1. REMOVE NO. 1 SWITCH HOLE BASE


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Lighting.Headlight Leveling Switch.Headlight Leveling Switch Removal

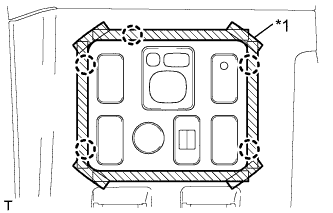

  1. Put protective tape around the No. 1 switch hole base.

    Text in Illustration
    *1
    		Protective Tape

  1. Using moulding remover D, detach the 5 claws and remove the No. 1 switch hole base.

  1. Disconnect the connectors.



2. REMOVE HEADLIGHT LEVELING SWITCH


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

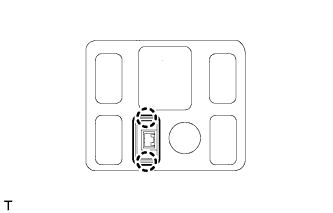

  1. Detach the 2 claws and remove the headlight leveling switch.
