Rear Cooler Relay On-Vehicle Inspection


  1. INSPECT REAR COOLER RELAY

Rear Cooler Relay -- On-Vehicle Inspection



1. INSPECT REAR COOLER RELAY


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Air Conditioning.Rear Cooler Relay.Rear Cooler Relay On-Vehicle Inspection

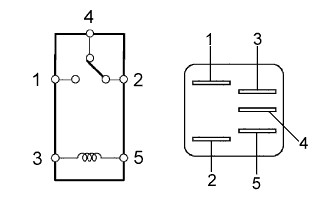

  1. Measure the resistance of the relay.

    resistance:
    Tester Connection
    		Specified Condition
    2 - 4
    		Below 1 Ω
    1 - 2
    		10 kΩ or higher
    1 - 2
    		Below 1 Ω (when battery voltage is applied to terminals 3 and 5)
    If the result is not as specified, replace the relay.
