Rear Combination Light Assembly Reassembly


  1. INSTALL REAR LIGHT BULB

  2. INSTALL REAR COMBINATION LIGHT BULB

Rear Combination Light Assembly -- Reassembly


HINT:
  1. Use the same procedures for the RH and LH sides.
  2. The procedures listed below are for the LH side.


1. INSTALL REAR LIGHT BULB


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

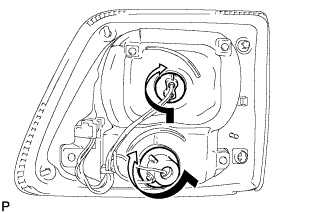

  1. Turn the 2 bulbs in the direction indicated by the arrows to install them.



2. INSTALL REAR COMBINATION LIGHT BULB


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

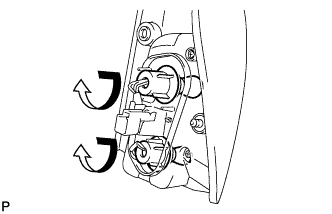

  1. Insert the 2 bulbs into the light.

  1. Turn the 2 bulbs in the direction indicated by the arrows to install them.
