Headlight Assembly (For Halogen Headlight) -- Installation |
- HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
| 1. INSTALL HEADLIGHT ASSEMBLY LH |
 |
Connect the connectors and install the headlight.

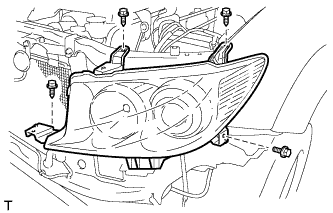

Install the 3 screws and bolt.
| 2. INSTALL FRONT BUMPER COVER |
 |
Put protective tape around the bumper cover.
w/ Fog Light:
Connect the 2 fog light connectors.
Attach the 8 claws to install the bumper cover.
Install the 7 clips.
 |
| 3. INSTALL ENGINE SIDE COVER SUB-ASSEMBLY LH |
 |
Install the engine side cover with the 3 bolts and 2 clips.
- Torque:
- 11.5 N*m{117 kgf*cm, 8 ft.*lbf}
| 4. INSTALL ENGINE SIDE COVER SUB-ASSEMBLY RH |
- HINT:
- Use the same procedures described for the LH side.
| 5. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH |
 |
Install the splash shield with the 3 clips and 4 screws.
| 6. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH |
- HINT:
- Use the same procedures described for the LH side.
| 7. INSTALL FRONT NO. 1 WHEEL OPENING EXTENSION PAD |
 |
- HINT:
- Use the same procedures to install the extension pad on the other side.
Install the extension pad with the 2 screws.
| 8. INSTALL RADIATOR GRILLE |
 |
Put protective tape around the radiator grille.
Attach the 6 claws to install the radiator grille.
Install the 2 clips and 2 screws.
| 9. ADJUST HEADLIGHT AIMING |
Adjust the headlight aiming (Toyota Fortuner RM0000014E400OX.html).
