Headlight Assembly (For Halogen Headlight) Reassembly


  1. INSTALL FRONT BUMPER STAY LH

  2. INSTALL FRONT TURN SIGNAL LIGHT BULB

  3. INSTALL NO. 2 HEADLIGHT BULB

  4. INSTALL CLEARANCE LIGHT BULB

  5. INSTALL NO. 1 HEADLIGHT BULB

  6. INSTALL HEADLIGHT SOCKET COVER

Headlight Assembly (For Halogen Headlight) -- Reassembly


HINT:
  1. Use the same procedures for the RH and LH side.
  2. The procedures listed below are for the LH side.

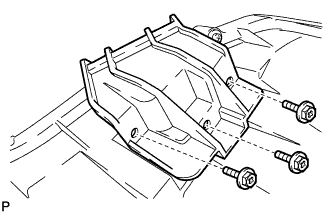

1. INSTALL FRONT BUMPER STAY LH


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Install the bumper stay with the 3 screws.

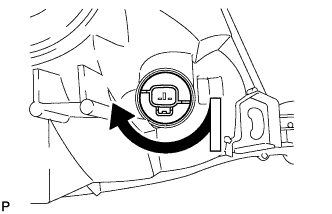

2. INSTALL FRONT TURN SIGNAL LIGHT BULB


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Install the bulb to the socket.

  1. Insert the bulb/socket unit into the headlight.

  1. Turn the bulb/socket unit in the direction indicated by the arrow to install it.

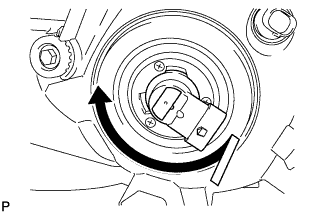

3. INSTALL NO. 2 HEADLIGHT BULB


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Insert the bulb into the headlight.

  1. Turn the bulb in the direction indicated by the arrow to install it.



4. INSTALL CLEARANCE LIGHT BULB


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Insert the bulb into the headlight.

  1. Turn the bulb in the direction indicated by the arrow to install it.

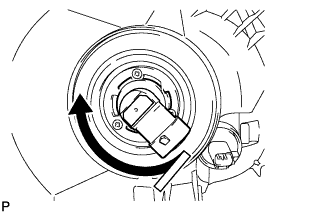

5. INSTALL NO. 1 HEADLIGHT BULB


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Insert the bulb into the headlight.

  1. Turn the bulb in the direction indicated by the arrow to install it.



6. INSTALL HEADLIGHT SOCKET COVER
