Headlight Assembly (For Halogen Headlight) Disassembly


  1. REMOVE HEADLIGHT SOCKET COVER

  2. REMOVE NO. 1 HEADLIGHT BULB

  3. REMOVE CLEARANCE LIGHT BULB

  4. REMOVE NO. 2 HEADLIGHT BULB

  5. REMOVE FRONT TURN SIGNAL LIGHT BULB

  6. REMOVE FRONT BUMPER STAY LH

Headlight Assembly (For Halogen Headlight) -- Disassembly


HINT:
  1. Use the same procedures for the RH and LH side.
  2. The procedures listed below are for the LH side.


1. REMOVE HEADLIGHT SOCKET COVER

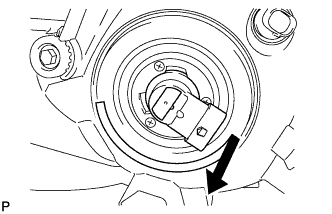

2. REMOVE NO. 1 HEADLIGHT BULB


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Turn the bulb in the direction indicated by the arrow and pull to remove it.

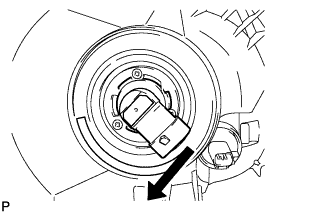

3. REMOVE CLEARANCE LIGHT BULB


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Turn the bulb in the direction indicated by the arrow and pull to remove it.



4. REMOVE NO. 2 HEADLIGHT BULB


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Turn the bulb in the direction indicated by the arrow and pull to remove it.



5. REMOVE FRONT TURN SIGNAL LIGHT BULB


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Turn the bulb/socket unit in the direction indicated by the arrow and pull to remove it.

  1. Remove the bulb from the socket.



6. REMOVE FRONT BUMPER STAY LH


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Remove the 3 screws, and then remove the bumper stay.
