Fog Light Relay On-Vehicle Inspection


  1. CHECK INTEGRATION RELAY (FOG LIGHT RELAY)

Fog Light Relay -- On-Vehicle Inspection



1. CHECK INTEGRATION RELAY (FOG LIGHT RELAY)


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Lighting.Fog Light Relay.Fog Light Relay On-Vehicle Inspection

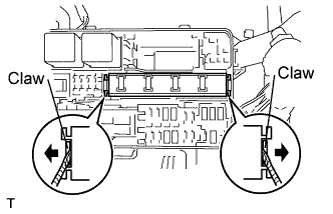

  1. Using a screwdriver, detach the 2 claws and disconnect the integration relay from the engine room junction block.

    HINT:
    Tape the screwdriver tip before use.


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Lighting.Fog Light Relay.Fog Light Relay On-Vehicle Inspection

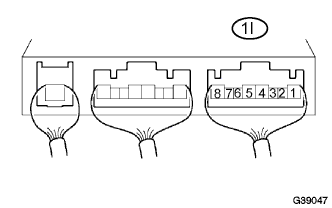

  1. Measure the voltage of the FOG light relay.

    Standard voltage:
    Tester Connection
    		Switch Condition
    		Specified Condition
    1I-4 - Body ground
    		Fog light switch ON and headlight dimmer switch set to TAIL or HEAD
    		10 to 14 V
    If the result is not as specified, replace the integration relay.
