Rear Lower Control Arm Removal


  1. REMOVE REAR WHEEL

  2. DISCONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY

  3. REMOVE LOWER CONTROL ARM ASSEMBLY LH

Rear Lower Control Arm -- Removal


HINT:
  1. Use the same procedures for the RH side and LH side.
  2. The procedures listed below are for the LH side.


1. REMOVE REAR WHEEL


2. DISCONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY


3. REMOVE LOWER CONTROL ARM ASSEMBLY LH


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Suspension.Rear Lower Control Arm.Rear Lower Control Arm Removal

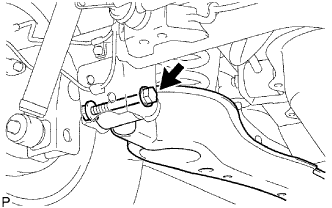

  1. Remove the nut and bolt from the axle housing.

    HINT:
    While fixing the nut in place, loosen and remove the bolt.


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Suspension.Rear Lower Control Arm.Rear Lower Control Arm Removal

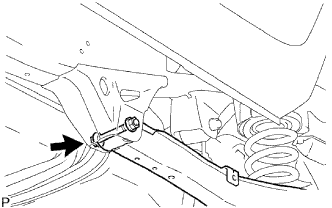

  1. Remove the nut, bolt and control arm.

    HINT:
    While fixing the nut in place, loosen and remove the bolt.
