Washer Motor On-Vehicle Inspection


  1. CHECK WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

  2. CHECK REAR WASHER MOTOR AND PUMP ASSEMBLY

Washer Motor -- On-Vehicle Inspection



1. CHECK WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50
HINT:
This check should be performed with the windshield washer motor and pump installed to the washer jar.

  1. Fill the washer jar with washer fluid.

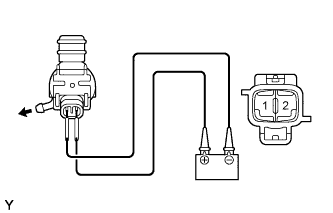

  1. Connect the battery's positive (+) lead to terminal 1 of the washer motor and pump, and the negative (-) lead to terminal 2.

  1. Check that washer fluid flows from the washer jar.

    OK:
    Washer fluid flows from washer jar.
    If the result is not as specified, replace the washer motor and pump assembly.


2. CHECK REAR WASHER MOTOR AND PUMP ASSEMBLY


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50
HINT:
This check should be performed with the windshield washer motor and pump installed to the washer jar.

  1. Fill the washer jar with washer fluid.

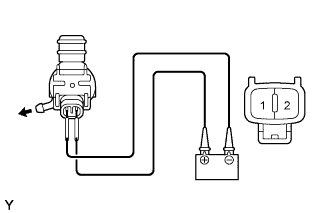

  1. Connect the battery's positive (+) lead to terminal 1 of the washer motor and pump, and the negative (-) lead to terminal 2.

  1. Check that washer fluid flows from the washer jar.

    OK:
    Washer fluid flows from washer jar.
    If the result is not as specified, replace the washer motor and pump assembly.
