Door Control Receiver Removal


  1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

  2. REMOVE DOOR CONTROL RECEIVER

Door Control Receiver -- Removal



1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Door Lock.Door Control Receiver.Door Control Receiver Removal

  1. Slightly bend the upper part of the glove compartment door to release the 2 stoppers and open the glove compartment door until it is horizontal.

    Text in Illustration
    *1
    		Stopper


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Door Lock.Door Control Receiver.Door Control Receiver Removal

  1. Pull the glove compartment door toward the rear of the vehicle to detach the 2 hinges and remove the glove compartment door.

    Text in Illustration
    *1
    		Hinge


2. REMOVE DOOR CONTROL RECEIVER


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Door Lock.Door Control Receiver.Door Control Receiver Removal

  1. Remove the nut.

    Text in Illustration
    *A
    		for LHD
    *B
    		for RHD

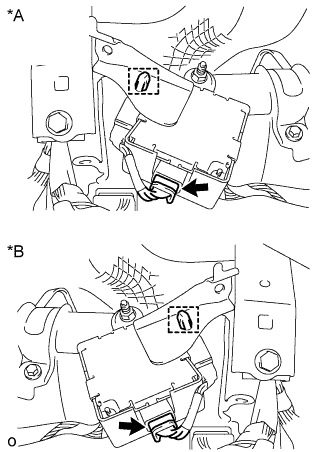

    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Door Lock.Door Control Receiver.Door Control Receiver Removal

  1. Disconnect the connector.

  1. Detach the clamp and remove the door control receiver.

    Text in Illustration
    *A
    		for LHD
    *B
    		for RHD
