Cigarette Lighter Removal


  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE SWITCH BASE

  3. REMOVE CIGARETTE LIGHTER COVER

  4. REMOVE CIGARETTE LIGHTER ASSEMBLY

Cigarette Lighter -- Removal



1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.


2. REMOVE SWITCH BASE


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Detach the 9 claws and guide.

    HINT:
    If the claws are difficult to detach, detach the claws from the back of the switch base.

  1. Disconnect the connectors and remove the switch base.



3. REMOVE CIGARETTE LIGHTER COVER

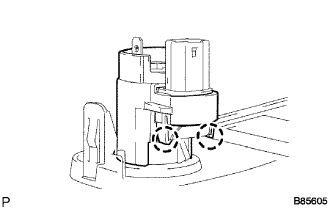

    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Other System.Cigarette Lighter.Cigarette Lighter Removal

  1. Detach the 2 claws and remove the cover.



4. REMOVE CIGARETTE LIGHTER ASSEMBLY


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50
    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

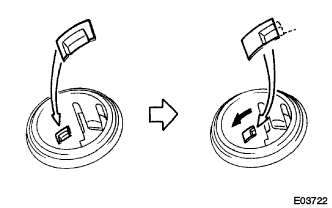

  1. Rotate the socket to disengage the notch.

  1. Pull out the socket halfway and rotate the socket until its protrusion is aligned with the groove of the cover.

  1. Remove the socket from the cover.
