Rear Door Speaker Installation

INSTALL REAR SPEAKER ASSEMBLY
INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
INSTALL DOOR PULL HANDLE
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Rear Door Speaker -- Installation

HINT:

Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.

1. INSTALL REAR SPEAKER ASSEMBLY

Install a nose piece to an air riveter or hand riveter. Then insert the mandrel part of a new φ4 mm waterproof rivet into the nose piece.

Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

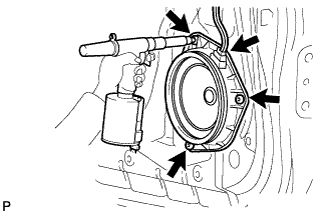

Using an air riveter or hand riveter, install the speaker with 3 new rivets.
NOTICE:
1. Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.
  Text in Illustration
  *1
  Mandrel
  *2
  Riveter
  *a
  INCORRECT
  *b
  CORRECT
2. Confirm that the rivets are seated properly against the speaker.
  Text in Illustration
  *1
  Riveter
  *a
  INCORRECT
  *b
  CORRECT
3. Do not tilt the riveter when installing the rivet to the speaker.
4. Do not leave any space between the rivet head and speaker.
5. Do not leave any space between the speaker and door. Firmly hold together the 2 items while installing the rivet.
  Text in Illustration
  *1
  Riveter
  *a
  INCORRECT
  *b
  CORRECT

Connect the connector.

2. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

Attach the 10 clips to install the rear door trim board.

Install the screw.

3. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

Connect the connector.

Attach the 2 claws and 2 clips to install the rear power window regulator switch assembly with rear door armrest base panel.

4. INSTALL DOOR PULL HANDLE

Install the door pull handle with the screw.

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Toyota Fortuner RM000004W63000X.html).
