Ignition Key Cylinder Light Inspection


  1. INSPECT KEY CYLINDER LIGHT ASSEMBLY

Ignition Key Cylinder Light -- Inspection



1. INSPECT KEY CYLINDER LIGHT ASSEMBLY


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Lighting.Ignition Key Cylinder Light.Ignition Key Cylinder Light Inspection

  1. Inspect operation of the ignition key cylinder light.

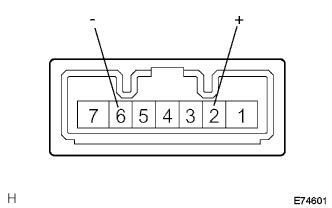

    1. Connect the battery's positive (+) lead to terminal 2 and negative (-) lead to terminal 6. Then check that the LED illuminates.

      OK:
      LED illuminates.
      If the result is not as specified, replace the key cylinder light assembly.
