Heated Oxygen Sensor (For Unleaded Gasoline Specification Vehicle) Removal


  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 1)

Heated Oxygen Sensor (For Unleaded Gasoline Specification Vehicle) -- Removal



1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag activation.


2. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 1)


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Disconnect the sensor connector.

  1. Detach the 3 wire clamps.



    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

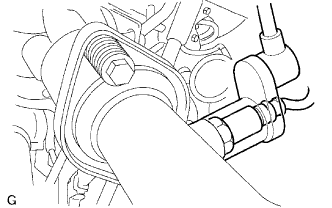

  1. Using SST, remove the sensor.

    SST
    09224-00010
