Heated Oxygen Sensor (For Unleaded Gasoline Specification Vehicle) Installation

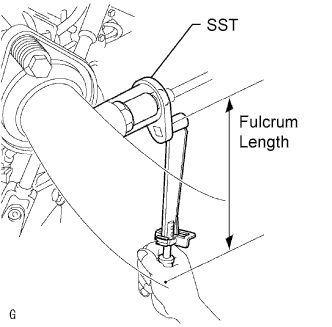

Using SST, install the sensor.

SST

09224-00010

Torque:

44 N*m{449 kgf*cm, 32 ft.*lbf}for use without SST

40 N*m{408 kgf*cm, 30 ft.*lbf}for use with SST

HINT:

1. Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).

2. Make sure SST and the wrench are connected in a straight line.

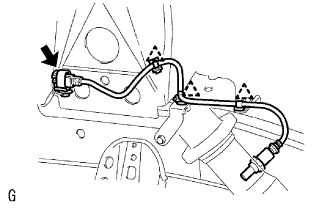

Attach the 3 wire clamps to the vehicle body.

Connect the sensor connector.
