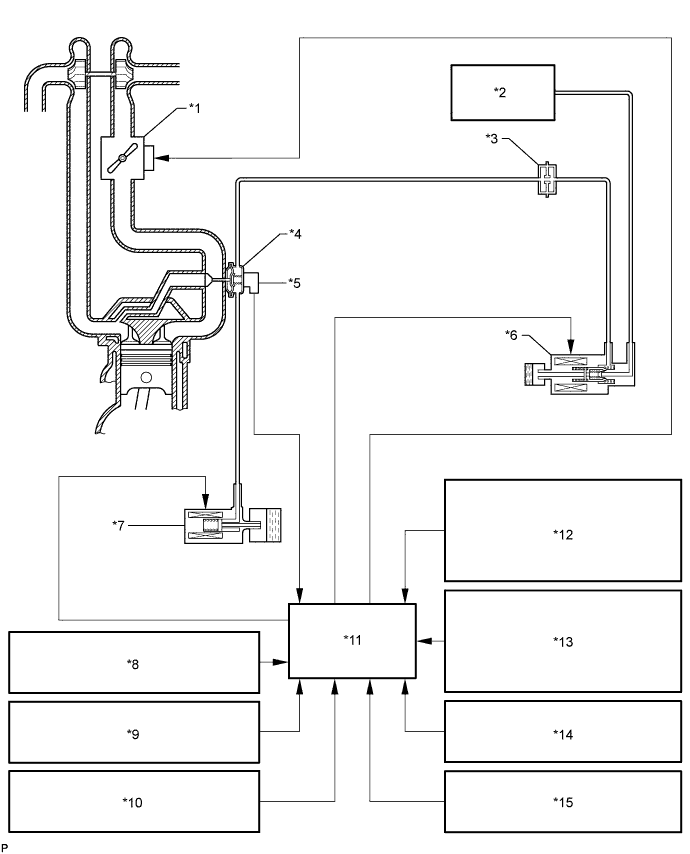

Emission Control System System Diagram
Emission Control System -- System Diagram |

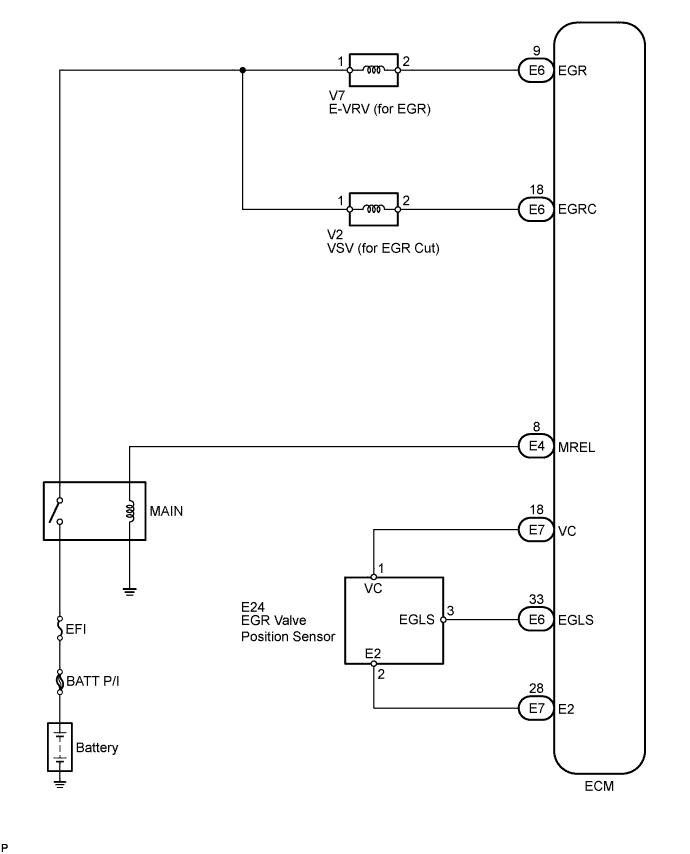

Text in Illustration*1
| Diesel Throttle Body
| *2
| Vacuum Pump
|
*3
| Vacuum Damper
| *4
| Electric EGR Control Valve
|
*5
| EGR Valve Position Sensor
| *6
| Electric Vacuum Regulating Valve (for EGR)
|
*7
| Vacuum Switching Valve (for EGR Cut)
| *8
| Atmospheric Pressure
|
*9
| Accelerator Pedal Position Sensor
| *10
| Intake Air Temperature Sensor
|
*11
| ECM
| *12
| Engine Coolant Temperature Sensor
|
*13
| Manifold Absolute Pressure Sensor
| *14
| Mass Air Flow Meter
|
*15
| Crankshaft Position Sensor
| -
| -
|
