Air Conditioning Control Assembly Removal

for Manual Air Conditioning System:

1. Put protective tape around the center instrument cluster finish panel.


   Text in Illustration

   *1	Protective Tape

2. Using a moulding remover, detach the 10 claws and 4 clips.






3. Detach the 4 claws and disconnect the air conditioner control.


4. Disconnect the connectors and remove the center instrument cluster finish panel.


for Automatic Air Conditioning System:

1. Put protective tape around the center instrument cluster finish panel.


   Text in Illustration

   *1	Protective Tape

2. Using a moulding remover, detach the 8 claws and 4 clips.


3. Disconnect the connectors and remove the center instrument cluster finish panel.

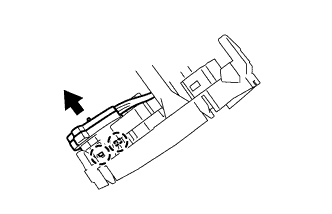

Detach the 2 claws.

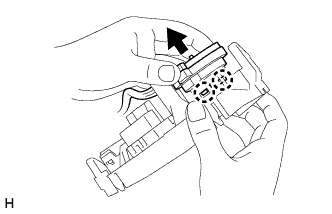

Disconnect the connector and remove the cooler switch.

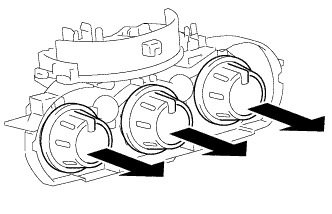

Remove the No. 2 heater control knob as shown in the illustration.

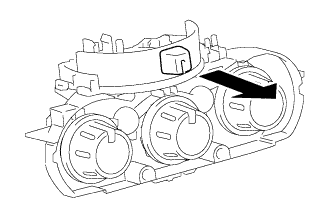

Remove the heater control knob as shown in the illustration.

Detach the 2 claws and disconnect the air inlet damper control cable sub-assembly.

Detach the 2 claws and disconnect the heater control cable sub-assembly.

Detach the 2 claws and disconnect the air mix damper control cable sub-assembly.

Disconnect the connector and remove the air conditioning control assembly.
