Air Conditioning Unit (For Automatic Air Conditioning System) -- Reassembly |
| 1. INSTALL EVAPORATOR TEMPERATURE SENSOR |
 |
- NOTICE:
- If reusing the evaporator, do not insert the sensor at a location where the sensor was previously inserted. Insert the sensor within range C shown in the illustration to install it.
Insert the evaporator temperature sensor as shown in the illustration.
| 2. INSTALL NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY |
 |
Install the cooler evaporator to the case.
Attach the temperature sensor clamp.
Attach the 2 claws to install the cover.
 |
Install the 4 screws.

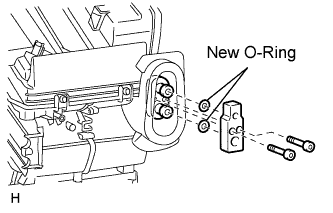

| 3. INSTALL COOLER EXPANSION VALVE |
 |
Sufficiently apply compressor oil to 2 new O-rings and the fitting surface of the hose joint.
- Compressor oil:
- ND-OIL 8 or equivalent
Install the 2 O-rings to the cooler evaporator.
Using a 4 mm socket hexagon wrench, install the cooler expansion valve with the 2 hexagon bolts.
- Torque:
- 3.5 N*m{35 kgf*cm, 30 in.*lbf}
| 4. INSTALL HEATER RADIATOR UNIT SUB-ASSEMBLY |
 |
Attach the evaporator case to the blower case.
Install the heater radiator with the screw.

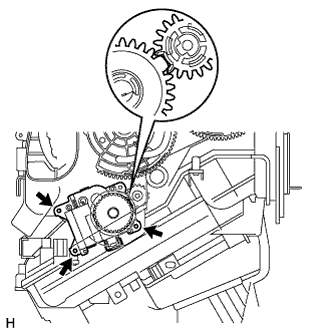

| 5. INSTALL MODE DAMPER SERVO SUB-ASSEMBLY |
 |
Set the damper servo so that the cutout part engages with the tooth of the gear to install the damper servo.
Install the 3 screws.

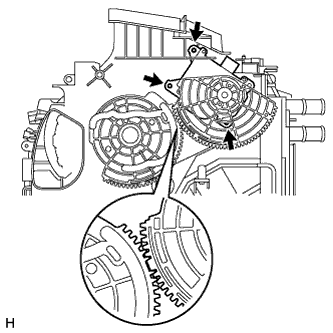

| 6. INSTALL AIR MIX DAMPER SERVO SUB-ASSEMBLY |
 |
Set the damper servo so that the cutout part engages with the tooth of the gear to install the damper servo.
Install the 3 screws.
| 7. INSTALL BLOWER ASSEMBLY |
Attach the blower assembly to the air conditioning radiator assembly.
Install the blower with the 2 screws.
 |
