Rear Speed Sensor On-Vehicle Inspection

Measure the resistance of the sensor.

Standard resistance:

Rear speed sensor LH:

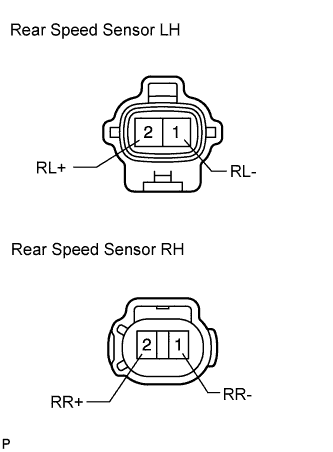

Tester Connection	Specified Condition
1 (RL-) - 2 (RL+)	0.75 to 2.0 kΩ
1 (RL-) - Body ground	10 kΩ or higher
2 (RL+) - Body ground	10 kΩ or higher

Rear speed sensor RH:

Tester Connection	Specified Condition
1 (RR-) - 2 (RR+)	0.75 to 2.0 kΩ
1 (RR-) - Body ground	10 kΩ or higher
2 (RR+) - Body ground	10 kΩ or higher

1. If the result is not as specified, replace the speed sensor.


HINT:

Check the speed sensor signal after speed sensor replacement (Toyota Fortuner RM0000010JQ00SX_02_0005.html).
