Meter / Gauge System Engine Coolant Temperature Gauge Malfunction

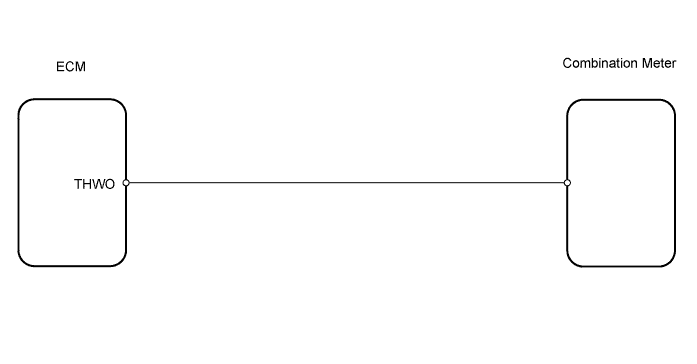

WIRING DIAGRAM

INSPECTION PROCEDURE

CHECK FOR DTC

CHECK WIRE HARNESS (METER - ECM)

METER / GAUGE SYSTEM - Engine Coolant Temperature Gauge Malfunction


WIRING DIAGRAM


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Meter.Meter / Gauge System.Meter / Gauge System Engine Coolant Temperature Gauge Malfunction


INSPECTION PROCEDURE

1.CHECK FOR DTC

  1. Check for DTCs of the SFI system (1GR-FE) or ECD system (1KD-FTV).

    Result:
    Result
    		Proceed to
    DTC is not output
    		A
    DTC is output
    		B


B
GO TO SFI SYSTEM (1GR-FE), ECD SYSTEM (1KD-FTV)
A


2.CHECK WIRE HARNESS (METER - ECM)

Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Meter.Meter / Gauge System.Meter / Gauge System Engine Coolant Temperature Gauge Malfunction

  1. Disconnect the C10 meter connector.

  1. Disconnect the E13*1 or E4*2 ECM connector.

    HINT:
    *1: 1GR-FE
    *2: 1KD-FTV

  1. Measure the resistance of the wire harness side connectors.

    Standard resistance:
    1GR-FE
    Tester Connection
    		Specified Condition
    C10-4 - E13-14 (THWO)
    		Below 1 Ω
    1KD-FTV:
    Tester Connection
    		Specified Condition
    C10-4 - E4-2 (THWO)
    		Below 1 Ω


NG
REPAIR OR REPLACE HARNESS AND CONNECTOR
OK

REPLACE COMBINATION METER ASSEMBLY
