Front Wiper Rubber Removal


  1. REMOVE FRONT WIPER BLADE

  2. REMOVE WIPER RUBBER

Front Wiper Rubber -- Removal


HINT:
  1. Use the same procedures for the RH side and LH side.
  2. The procedures listed below are for the LH side.


1. REMOVE FRONT WIPER BLADE


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Detach the claw as shown in the illustration.



    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Remove the wiper blade as shown in the illustration.

    NOTICE:
    Do not fold the wiper arm with the wiper blade removed. The arm tip may damage the windshield surface.


2. REMOVE WIPER RUBBER


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

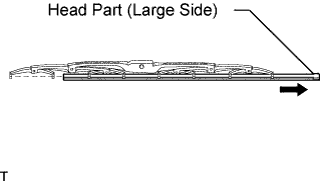

  1. Detach the head part (large side) of the wiper rubber from the wiper blade.



    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Wiper And Washer.Front Wiper Rubber.Front Wiper Rubber Removal

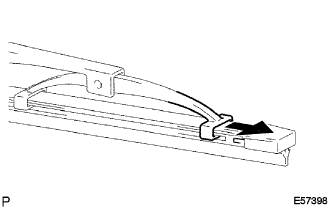

  1. Remove the wiper rubber in the direction indicated by the arrow in the illustration.

    NOTICE:
    Do not pull out the wiper rubber forcibly. Doing so will deform the backing plate or damage the blade claw.

  1. Remove the 2 wiper rubber backing plates from the wiper rubber.
