Wiper Switch Removal


  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE STEERING COLUMN LOWER COVER

  3. REMOVE STEERING COLUMN UPPER COVER

  4. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

Wiper Switch -- Removal


HINT:
  1. Use the same procedure for RHD and LHD vehicles.
  2. The procedure listed below is for LHD vehicles.


1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Toyota Fortuner RM000004W63000X.html).


2. REMOVE STEERING COLUMN LOWER COVER


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Remove the 3 screws and lower cover.



3. REMOVE STEERING COLUMN UPPER COVER

  1. Detach the claw and remove the upper cover.

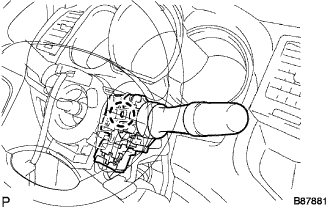

4. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Disconnect the connectors.

  1. Detach the claw and remove the windshield wiper switch.

    NOTICE:
    Do not push the claw with excessive force as damage may occur.
