Rear Combination Light Assembly Disassembly


  1. REMOVE REAR TURN SIGNAL LIGHT BULB

  2. REMOVE TAIL AND STOP LIGHT BULB

  3. REMOVE BACK-UP LIGHT BULB

  4. REMOVE TAILLIGHT BULB

Rear Combination Light Assembly -- Disassembly


HINT:
  1. Use the same procedures for the RH side and LH side.
  2. The procedures listed below are for the LH side.


1. REMOVE REAR TURN SIGNAL LIGHT BULB


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

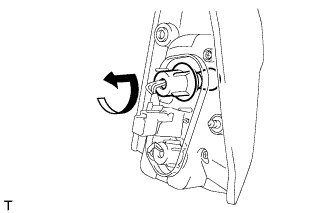

  1. Turn the bulb in the direction indicated by the arrow and pull to remove it.



2. REMOVE TAIL AND STOP LIGHT BULB


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

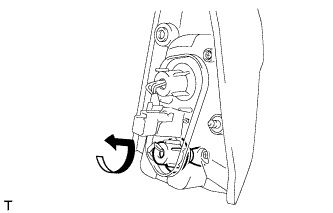

  1. Turn the bulb in the direction indicated by the arrow and pull to remove it.



3. REMOVE BACK-UP LIGHT BULB


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

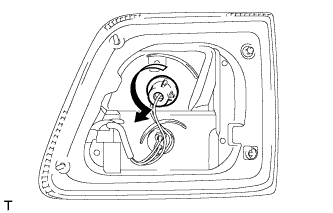

  1. Turn the bulb in the direction indicated by the arrow and pull to remove it.



4. REMOVE TAILLIGHT BULB


Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Turn the bulb in the direction indicated by the arrow and pull to remove it.
