Rear Combination Light Assembly -- Installation |
- HINT:
- Use the same procedure for the RH and LH side.
- The procedure listed below is for the LH side.
| 1. INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH |
Attach the claw
Attach the guide to install the rear combination light socket and wire sub-assembly LH.
| 2. INSTALL REAR TURN SIGNAL LIGHT BULB |
Install the rear turn signal light bulb to the rear combination light socket and wire sub-assembly LH.
 |

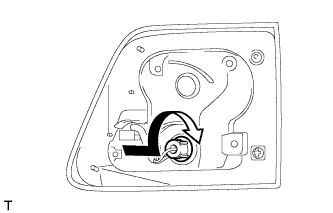

Turn the rear combination light socket and wire sub-assembly LH in the direction indicated by the arrow in the illustration to install the socket.
| 3. INSTALL TAIL AND STOP LIGHT BULB |
Install the tail and stop light bulb to the rear combination light socket and wire sub-assembly LH.
 |

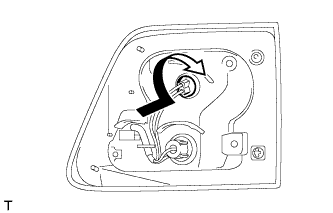

Turn the rear combination light socket and wire sub-assembly LH in the direction indicated by the arrow in the illustration to install the socket.
| 4. INSTALL REAR COMBINATION LIGHT GASKET LH |
Install a new rear combination light gasket LH.
| 5. INSTALL REAR COMBINATION LIGHT ASSEMBLY LH |
Connect the connector.
Attach the rear combination light assembly LH with the clip and pin.
Install the 2 bolts to install the rear combination light assembly LH.
| 6. INSTALL REAR LIGHT GASKET LH |
Install a new rear light gasket LH.
| 7. INSTALL REAR LIGHT SOCKET AND WIRE |
Attach the claw.
Attach the guide to install the rear light socket and wire.
| 8. INSTALL BACK UP LIGHT BULB |
Install the back up light bulb to the rear light socket and wire.
 |

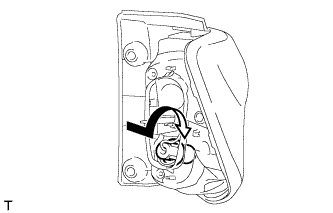

Turn the rear light socket and wire in the direction indicated by the arrow in the illustration to install the socket.
| 9. INSTALL TAILLIGHT BULB |
Install the taillight bulb to the rear light socket and wire.
 |
Turn the rear light socket and wire in the direction indicated by the arrow in the illustration to install the socket.
| 10. INSTALL REAR LIGHT ASSEMBLY LH |
Attach the rear light assembly LH with the claw and pin.
Install the 2 nuts to install the rear light assembly LH.
Connect the connector.
| 11. INSTALL BACK DOOR TRIM BOARD ASSEMBLY |
Attach the 16 clips to install the back door trim board.
